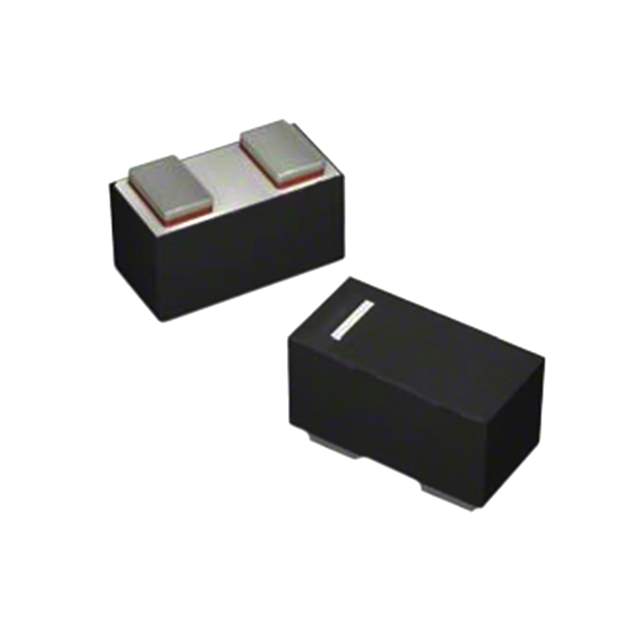

SMS7630-061 Real Image
Same model may have multiple batches, images only for reference.

SMS7630-061

Part No SMS7630-061
Manufacturer Skyworks Solutions Inc.
Catalog RF Diodes
Description DIODE SCHOTTKY 50MA 0201
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Is this a common-used part? Yes
Popularity High
Supply and Demand Status Sufficient
Categories Discrete Semiconductor Products
Manufacturer Skyworks Solutions Inc.
Packaging Reel - TR
Status Active
Diode Type Schottky - Single
Voltage - Peak Reverse (Max) 1V
Current - Max 50mA
Power Dissipation (Max) 75mW
Temperature Range - Operating -65°C to 150°C (TA)
Case / Package 0201
Win Source Part Number 029466-SMS7630-061
Family Name SMS7630-061
Introduction Date May 10, 2010
ECCN EAR99
Estimated EOL Date 2024
Ultra Librarian 3D Model Ultra Librarian SMS7630-061 CAD Model

Description

The Skyworks Solutions Inc. SMS7630-061 is a schottky single diode designed for use in discrete semiconductor products.

  • Manufacturer: Skyworks Solutions Inc.
  • Product Name: SMS7630-061
  • Maximum Current Rating: 50mA
  • Peak Reverse Voltage: 1V
  • Package: Reel
  • Mounting: 0201 package
  • Power Dissipation: 75mW
  • Operating Temperature Range: -65°C to 150°C (TA)
  • Popularity: High
  • Supply and Demand Status: Sufficient
  • Estimated EOL Date: 2024
