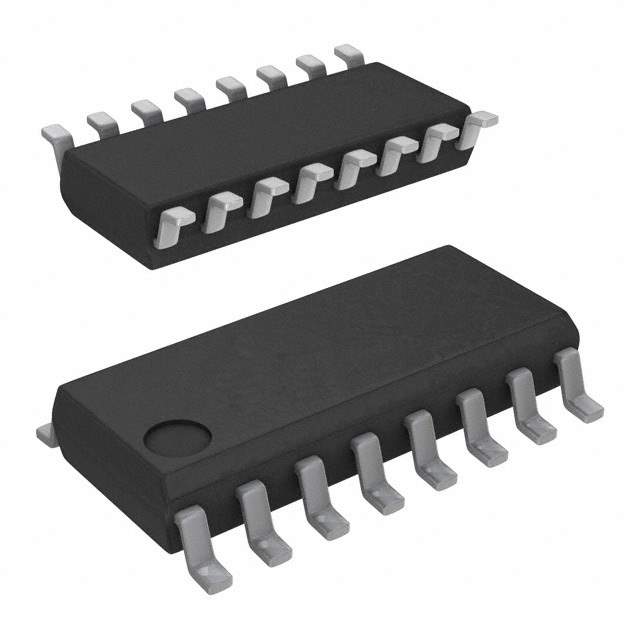

SI8274GB4D-IS1R Real Image
Same model may have multiple batches, images only for reference.

SI8274GB4D-IS1R

Part No SI8274GB4D-IS1R
Manufacturer Skyworks Solutions Inc.
Catalog Isolators - Gate Drivers
Description DGTL ISO 2.5KV GATE DRVR 16SOIC / 4A Gate Driver Capacitive Coupling 2500Vrms 2 Channel 16-SOIC
Datasheet
SI8274GB4D-IS1R Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Isolators>Isolators - Gate Drivers
Mfr Skyworks Solutions Inc.
Package Tape & Reel
Technology Capacitive Coupling
Number of Channels 2
Voltage - Isolation 2500Vrms
Common Mode Transient Immunity (Min) 200kV/µs
Propagation Delay tpLH / tpHL (Max) 105ns, 75ns
Pulse Width Distortion (Max) 47ns
Rise / Fall Time (Typ) 10.5ns, 13.3ns
Current - Output High, Low 1.8A, 4A
Current - Peak Output 4A
Voltage - Output Supply 4.2V ~ 30V
Temperature Range - Operating -40°C ~ 125°C
Mounting SMD (SMT)
Package / Case 16-SOIC (0.154", 3.90mm Width)
Supplier Device Package 16-SOIC
Approval Agency CQC, CSA, UR, VDE
Base Product Number SI8274
Other Names 336-5555-6,336-5555-1,336-5555-2,SI8274GB4D-IS1R
Standard Package 2,500
MSL Level 2A (4 Weeks)
ECCN EAR99
HTSUS 8542.39.0001
Win Source Part Number 1243812-SI8274GB4D-IS1R
Ultra Librarian 3D Model Ultra Librarian SI8274GB4D-IS1R CAD Model

Description

The SI8274GB4D-IS1R Isolator from Skyworks Solutions Inc. is a capacitive coupling technology isolator that comes with two channels.

  • Voltage Isolation: 2500Vrms
  • Common Mode Transient Immunity(min): 200kV/μs
  • Rise/Fall Time(typ): 10.5ns and 13.3ns, respectively
  • Pulse Width Distortion(max): 47ns
  • Propagation Delay tpLH / tpHL(max): 105ns and 75ns, respectively
  • Current - Output High: 1.8A
  • Current - Output Low: 4A
  • Voltage Output Supply: 4.2V ~ 30V
  • Temperature Range - Operating: -40°C ~ 125°C
