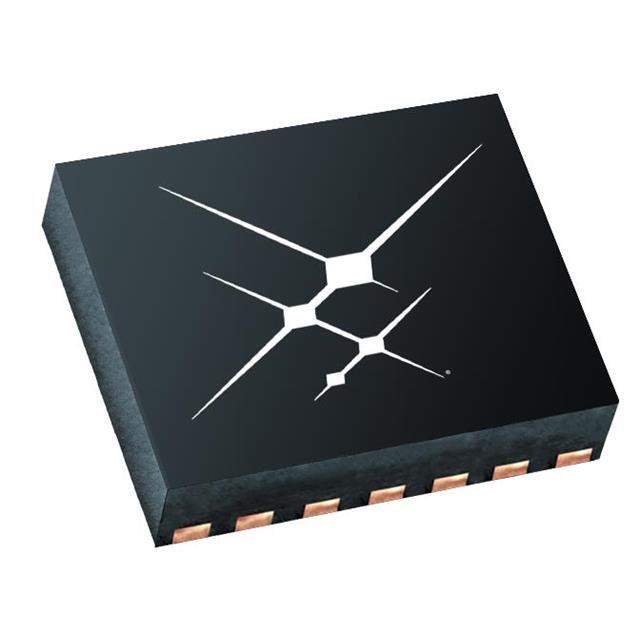

SI8274GA1D-IM1 Real Image
Same model may have multiple batches, images only for reference.

SI8274GA1D-IM1

Part No SI8274GA1D-IM1
Manufacturer Skyworks Solutions Inc.
Catalog Isolators - Gate Drivers
Description HIGH CMTI 1 KV 3 V UVLO PWM INPU / 4A Gate Driver RF Coupling 1000Vrms 1 Channel 14-DFN (5x5)
Datasheet
SI8274GA1D-IM1 Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Isolators - Isolators - Gate Drivers
Mfr Skyworks Solutions Inc.
Series Si827x
Package Tube
Technology RF Coupling
Number of Channels 1
Voltage - Isolation 1000Vrms
Common Mode Transient Immunity (Min) 200kV/µs
Propagation Delay tpLH / tpHL (Max) 105ns, 75ns
Pulse Width Distortion (Max) 47ns
Rise / Fall Time (Typ) 10.5ns, 13.3ns
Current - Output High, Low 1.8A, 4A
Current - Peak Output 4A
Voltage - Output Supply 4.2V ~ 30V
Temperature Range - Operating -40°C ~ 125°C
Mounting Type Surface Mount
Package / Case 14-VDFN
Supplier Device Package 14-DFN (5x5)
Approval Agency CQC, CSA, UL, VDE
Base Product Number SI8274
Standard Package 60
MSL Level 2 (1 Year)
ECCN EAR99
HTSUS 8542.39.0001
Win Source Part Number 1340007-SI8274GA1D-IM1
Ultra Librarian 3D Model Ultra Librarian SI8274GA1D-IM1 CAD Model

Description

The Si827x series from Skyworks Solutions Inc. offers high-performance isolators in the form of Si8274GA1D-IM1.

  • Technology: RF Coupled
  • Package / Case: 14-VDFN
  • Voltage - Isolation: 1000Vrms
  • Common Mode Transient Immunity (Min): 200kV/μs
  • Current - Output High, Low: 1.8A, 4A
  • Propagation Delay tpLH / tpHL (Max): 105ns, 75ns
  • Pulse Width Distortion (PWD): 47ns
  • Operating Temperature: -40°C ~ 125°C
  • Approvals: CQC, CSA, UL, VDE
  • Mounting Type: Surface Mount
  • Package Quantity: 60
