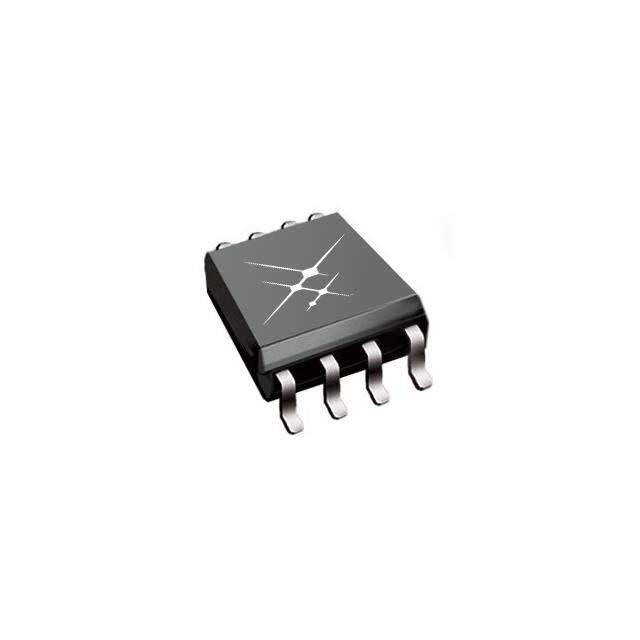

The electronic component with an Id of 1097156 is a high-quality product from Skyworks Solutions Inc. The product has a Win Source Part Number of 1243776-SI8271AB-IS and falls under the category of Isolators > Isolators - Gate Drivers.

• Package: Tube
• Standard Package: 96
• Mounting: SMD (SMT)
• Technology: Capacitive Coupling
• Current Output High: 1.8A
• Current Output Low: 4A
• Rise/Fall Time (Typ): 10.5ns and 13.3ns
• Channels: One
• Voltage Isolation: 2500Vrms
• Common Mode Transient Immunity (Min): 150kV/µs
• Propagation Delay tpLH / tpHL (Max): 60ns and 60ns
• Current Peak Output: 4A
• Pulse Width Distortion (Max): 8ns
• Package/Case: 8-SOIC (0.154", 3.90mm Width)
• Supplier Device Package: 8-SOIC
• Temperature Range - Operating: -40°C ~ 125°C
• MSL Level: 2A (4 Weeks)
• Voltage Output Supply: 4.6V ~ 30V
• HTSUS code: 8542.39.0001
• Approvals: CQC, CSA, UR, and VDE
