Same model may have multiple batches, images only for reference.

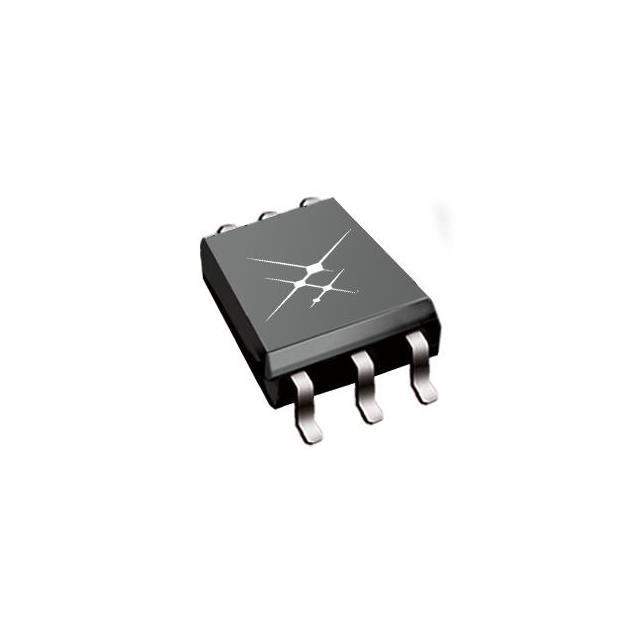

SI8261AAD-C-IS Real Image
Same model may have multiple batches, images only for reference.

SI8261AAD-C-IS

Part No SI8261AAD-C-IS
Manufacturer Skyworks Solutions Inc.
Catalog Isolators - Gate Drivers
Description DGTL ISO 5KV 1CH GATE DRVR 6SDIP / 600mA Gate Driver Capacitive Coupling 5000Vrms 1 Channel 6-SDIP Gull Wing
Datasheet
SI8261AAD-C-IS Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Isolators>Isolators - Gate Drivers
Mfr Skyworks Solutions Inc.
Series Automotive, AEC-Q100
Package Tube
Technology Capacitive Coupling
Number of Channels 1
Voltage - Isolation 5000Vrms
Common Mode Transient Immunity (Min) 35kV/µs
Propagation Delay tpLH / tpHL (Max) 60ns, 50ns
Pulse Width Distortion (Max) 28ns
Rise / Fall Time (Typ) 5.5ns, 8.5ns
Current - Output High, Low 400mA, 600mA
Current - Peak Output 600mA
Voltage - Forward (Vf) (Typ) 2.8V (Max)
Current - DC Forward (If) (Max) 30 mA
Voltage - Output Supply 6.5V ~ 30V
Temperature Range - Operating -40°C ~ 125°C
Mounting SMD (SMT)
Package / Case 6-SOIC (0.295", 7.50mm Width)
Supplier Device Package 6-SDIP Gull Wing
Approval Agency CQC, CSA, UR, VDE
Base Product Number SI8261
Other Names -SI8261AAD-C
Standard Package 100
MSL Level 3 (168 Hours)
ECCN EAR99
HTSUS 8542.39.0001
Win Source Part Number 1243591-SI8261AAD-C-IS
Ultra Librarian 3D Model Ultra Librarian SI8261AAD-C-IS CAD Model

Description

The SI8261AAD-C-IS is an isolator gate driver designed for use in electronic devices.

  • Part of: automotive AEC-Q100 series
  • Voltage Isolation: 5000Vrms
  • Technology: Capacitive coupling
  • Number of Channels: 1
  • Voltage Output Supply: 6.5V to 30V
  • Rise Time: 5.5ns
  • Fall Time: 8.5ns
  • Temperature Range: -40°C to 125°C
