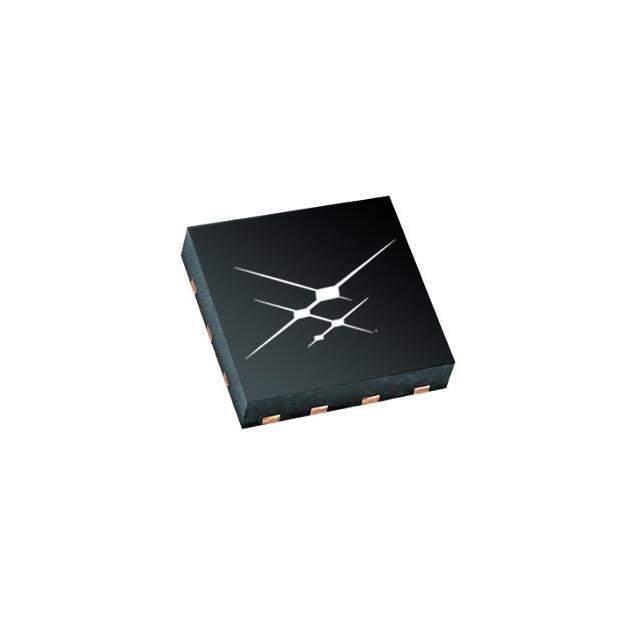

SI8234BB-D-IM1 Real Image
Same model may have multiple batches, images only for reference.

SI8234BB-D-IM1

Part No SI8234BB-D-IM1
Manufacturer Skyworks Solutions Inc.
Catalog Isolators - Gate Drivers
Description ISOLATED GATE DRIVER / 4A Gate Driver Capacitive Coupling 2500Vrms 2 Channel 14-QFN (5x5)
Datasheet
SI8234BB-D-IM1 Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Isolators>Isolators - Gate Drivers
Mfr Skyworks Solutions Inc.
Series Automotive, AEC-Q100
Package Tube
Technology Capacitive Coupling
Number of Channels 2
Voltage - Isolation 2500Vrms
Common Mode Transient Immunity (Min) 45kV/µs
Propagation Delay tpLH / tpHL (Max) 60ns, 60ns
Pulse Width Distortion (Max) 5.6ns
Rise / Fall Time (Typ) 12ns, 12ns
Current - Output High, Low 2A, 4A
Current - Peak Output 4A
Voltage - Output Supply 6.5V ~ 24V
Temperature Range - Operating -40°C ~ 125°C
Mounting SMD (SMT)
Package / Case 14-VDFN
Supplier Device Package 14-QFN (5x5)
Approval Agency CQC, CSA, UR, VDE
Base Product Number SI8234
Other Names 336-4267
Standard Package 490
MSL Level 6 (Time on Label)
ECCN EAR99
HTSUS 8542.39.0001
Win Source Part Number 1243567-SI8234BB-D-IM1
Ultra Librarian 3D Model Ultra Librarian SI8234BB-D-IM1 CAD Model

Description

The Skyworks Solutions Inc. Isolators - Gate Drivers are a great addition to any electronic component collection.

  • Feature: These isolators are designed to provide a high level of isolation and protection for a variety of applications.
  • Technology: Capacitance coupling
  • Voltage Isolation: 2500Vrms
  • Current Output High: 2A
  • Current Output Low: 4A
  • Common Mode Transient Immunity: 45kV/μs
  • Propagation Delay: 60ns
