The RFX5000 is a highly integrated RF front-end module (FEM) manufactured by Skyworks Solutions. It is designed for high-performance wireless communication applications, particularly in IoT (Internet of Things) devices and smart home applications operating in the sub-GHz frequency bands. The RFX5000 combines multiple RF components into a single, compact package, simplifying design and reducing board space while delivering excellent performance.

Applications

• IoT (Internet of Things) Devices
• Smart Home Applications
• Wireless Sensors
• Remote Control Systems
• Security Systems

Features

• Integrated RF Front-End: Combines a power amplifier (PA), low noise amplifier (LNA), and transmit/receive (T/R) switch into a single module.
• Sub-GHz Operation: Designed for use in frequency bands below 1 GHz, such as 868 MHz and 915 MHz.
• Low Power Consumption: Optimizes power consumption for battery-powered applications.
• High Efficiency: Delivers high efficiency in both transmit and receive modes.
• Small Package Size: Enables compact designs and efficient board layout.
• Integrated Matching Network: Simplifies impedance matching and reduces external component count.

Benefits

• Simplified Design: Integrated RF front-end simplifies system design and reduces development time.
• Reduced Board Space: Compact package size allows for integration into space-constrained applications.
• Extended Battery Life: Low power consumption and high efficiency contribute to extended battery life in portable devices.
• Improved Performance: High efficiency and integrated matching network deliver excellent RF performance.
• Cost-Effective Solution: Integration reduces component count and overall system cost.

Technical Specifications

• Frequency Range: Typically operates in the sub-GHz frequency bands (e.g., 868 MHz, 915 MHz).
• Output Power: Typically up to +20 dBm.
• Supply Voltage: Typically between 2.0 V and 3.6 V.
• Current Consumption: Optimized for low power operation.
• Receive Gain: Typically around 12 dB.

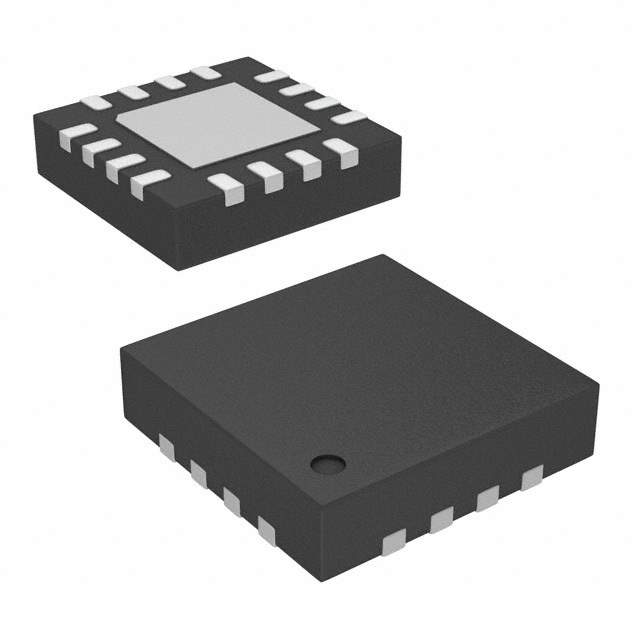

• Package: Commonly available in small QFN (Quad Flat No-leads) packages.
