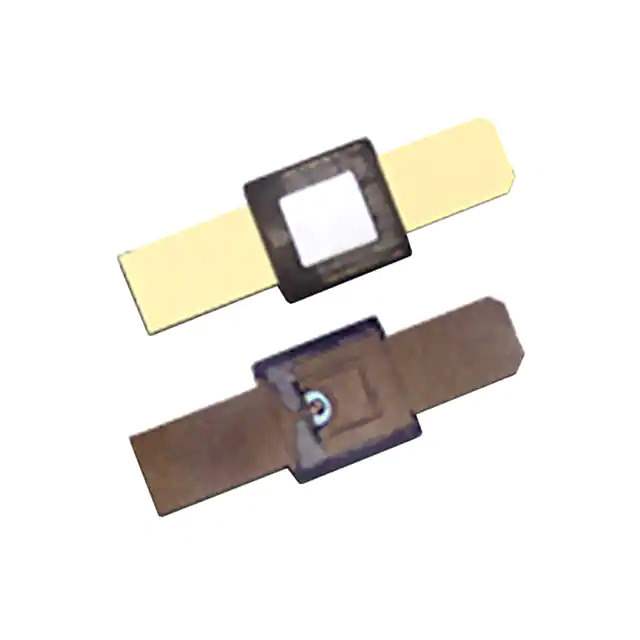

DSM8100-000 Real Image
Same model may have multiple batches, images only for reference.

DSM8100-000

Part No DSM8100-000
Manufacturer Skyworks Solutions Inc.
Catalog RF Diodes
Description RF DIODE PIN 60V 250MW
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products - Diodes - RF Diodes
Mfr Skyworks Solutions Inc.
Package Tray
Product Status Active
Diode Type PIN - Single
Voltage - Peak Reverse (Max) 60V
Capacitance @ Vr, F 0.025pF @ 10V, 1MHz
Resistance @ If, F 3.5Ohm @ 10mA, 100MHz
Power Dissipation (Max) 250 mW
Temperature Range - Operating -65°C ~ 150°C (TA)
Base Product Number DSM8100
Standard Package 100 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8541.10.0080
Win Source Part Number 851835-DSM8100-000
Ultra Librarian 3D Model Ultra Librarian DSM8100-000 CAD Model

Description

The DSM8100-000 is a PIN diode in a tray package.

  • Diode Configuration: Single
  • Package: Tray
  • Peak Reverse Voltage: 60V
  • Capacitance: 0.025pF @ 10V and 1MHz
  • Power Dissipation: 250mW
  • Resistance: 3.5Ω @ 10mA and 100MHz
  • Applications: RF
  • Operating Temperature: -65°C to 150°C
  • Manufacturer: Skyworks Solutions Inc.
  • Status: Active
