Same model may have multiple batches, images only for reference.

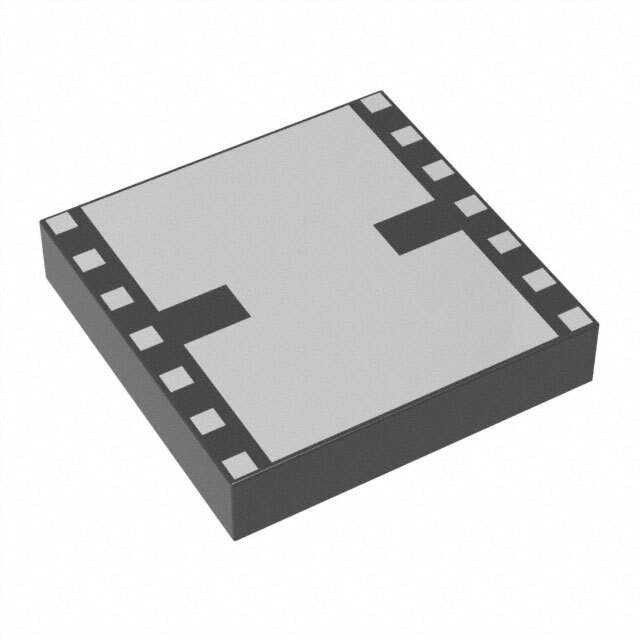

AWB7224P8 Real Image
Same model may have multiple batches, images only for reference.

AWB7224P8

Part No AWB7224P8
Manufacturer Skyworks Solutions Inc.
Catalog RF Amplifiers
Description IC AMP HSDPA 728MHZ-769MHZ 14SMD / RF Amplifier IC HSDPA, LTE, WCDMA 728MHz ~ 769MHz 14-SMD Module
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category RF and Wireless - RF Amplifiers
Mfr Skyworks Solutions Inc.
Package Tape & Reel
Product Status Obsolete
Frequency 728MHz ~ 769MHz
P1dB 35.5dBm
Gain 29dB
RF Type HSDPA, LTE, WCDMA
Voltage - Supply 4.5V
Current - Supply 825mA
Test Frequency 768MHz
Mounting Type Surface Mount
Package / Case 14-SMD Module
Supplier Device Package 14-SMD Module
Standard Package 2,500 pcs
MSL Level 4 (72 Hours)
ECCN EAR99
HTSUS 8542.33.0001
Win Source Part Number 862697-AWB7224P8
Ultra Librarian 3D Model Ultra Librarian AWB7224P8 CAD Model

Description

The 862697-AWB7224P8 is an RF amplifier designed for RF and wireless applications.

  • Frequency Range: 728MHz to 769MHz
  • Test Frequency: 768MHz
  • Gain: 29dB
  • Applications: HSDPA, LTE, and WCDMA signals
  • P1dB: 35.5dBm
  • Voltage Supply: 4.5V
  • Current Supply: 825mA
  • Package: 14-SMD module
  • Mounting: Surface Mount
  • Packaging: Tape and reel
  • Quantity: 2,500 pieces
  • Manufacturer: Skyworks Solutions Inc.
  • Status: Obsolete
  • ECCN: EAR99
  • MSL Level: 4 (72 hours)
  • HTSUS code: 8542.33.0001
