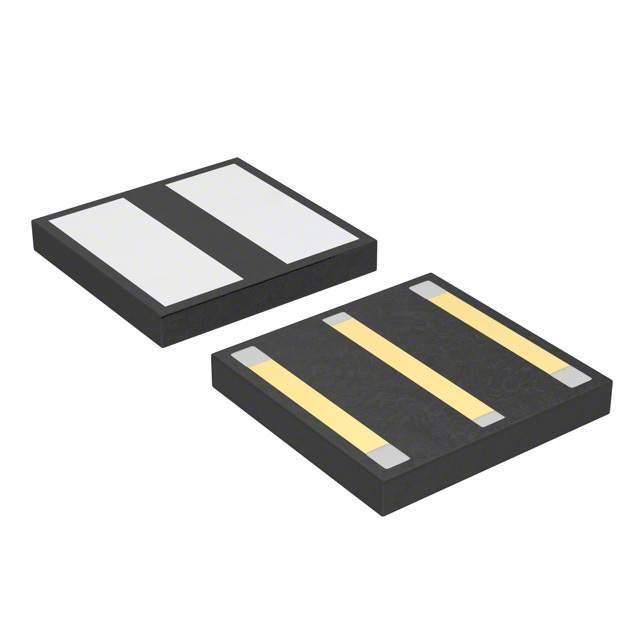

Same model may have multiple batches, images only for reference.
ATN3590-00 Skyworks Solutions Inc.
Same model may have multiple batches, images only for reference.

ATN3590-00

Part No ATN3590-00
Manufacturer Skyworks Solutions Inc.
Catalog Attenuators
Description RF ATTENUATOR 0DB 50OHM DIE
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category RF and Wireless - Attenuators
Mfr Skyworks Solutions Inc.
Package Box
Product Status Active
Attenuation Value 0dB
Frequency Range 0 Hz ~ 40 GHz
Power (Watts) 2W
Impedance 50 Ohms
Package / Case Die
Base Product Number ATN3590
Standard Package 100 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8533.21.0020
Win Source Part Number 805217-ATN3590-00
Ultra Librarian 3D Model Ultra Librarian ATN3590-00 CAD Model

Description

The 805217-ATN3590-00 is a RF and Wireless attenuator designed for various applications.

  • Frequency Range: 0 Hz to 40 GHz
  • Attenuation: 0dB
  • Power Rating: 2W
  • Impedance: 50 Ohms
  • Package: Die
  • Standard Package: 100 pcs
  • Manufacturer: Skyworks Solutions Inc.
  • Series: ATN3590
  • Status: Active
