Same model may have multiple batches, images only for reference.

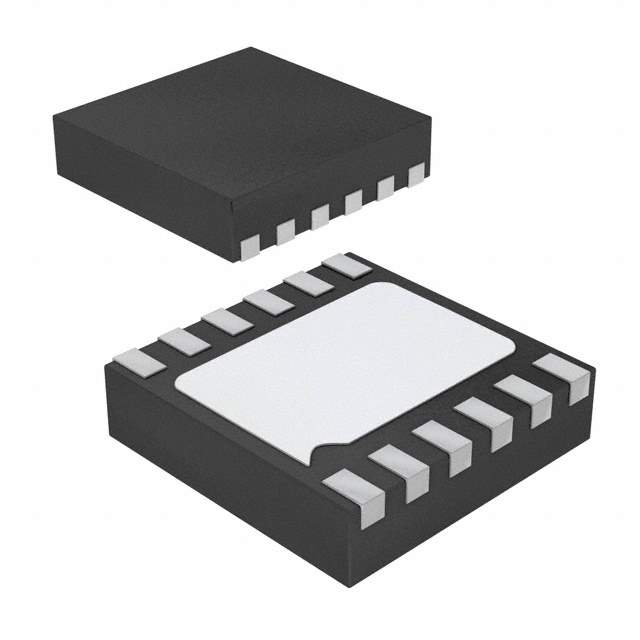

AAT3171AIWP-T1 Real Image
Same model may have multiple batches, images only for reference.

AAT3171AIWP-T1

Part No AAT3171AIWP-T1
Manufacturer Skyworks Solutions Inc.
Catalog Board Mount LED Drivers
Description IC LED DRIVER RGLTR DIM 12TDFN
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits (ICs)
Manufacturer Skyworks Solutions Inc.
Packaging Reel package
Part Status Obsolete(EOL)
Type DC DC Regulator
Topology Switched Capacitor (Charge Pump)
Internal Switch(s) Yes
Number of Outputs 1
Voltage Supply MIN 2.7V
Voltage Supply MAX 5.5V
Output Current per Channel 800mA (Flash)
Frequency 1MHz
Dimming S2Cwire
Applications Camera Flash
Operating Temperature Range -40°C ~ 85°C (TA)
Mounting SMD
Package 12-WFDFN Exposed Pad
Manufacturer Package 12-TDFN (3x3)
Win Source Part Number 766862-AAT3171AIWP-T1
Popularity Medium
Supply and Demand Status Limited
Family Name AAT3171
Introduction Date March 14, 2007
ECCN EAR99
Estimated EOL Date Obsolete
Ultra Librarian 3D Model Ultra Librarian AAT3171AIWP-T1 CAD Model

Description

Skyworks Solutions Inc.'s electronic component with Win Source Part Number 766862-AAT3171AIWP-T1 is a DC DC regulator with an operating temperature range of -40°C ~ 85°C (TA).

  • Operating Temperature: -40°C ~ 85°C (TA)
  • Package: 12-WFDFN Exposed Pad
  • Applications: Camera Flash
  • Popularity: Medium
  • Status: Obsolete
