Same model may have multiple batches, images only for reference.

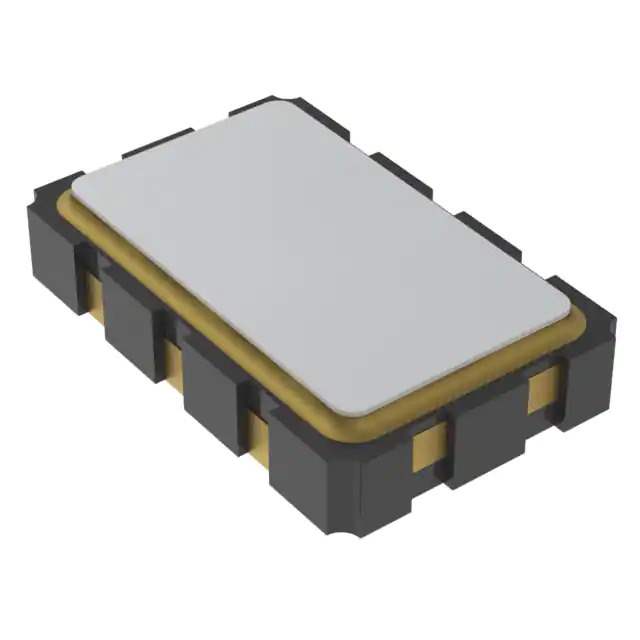

514FAA000115BAGR Real Image
Same model may have multiple batches, images only for reference.

514FAA000115BAGR

Part No 514FAA000115BAGR
Manufacturer Skyworks Solutions Inc.
Catalog Oscillators
Description XTAL OSC XO 125.0000MHZ LVDS SMD
Datasheet
514FAA000115BAGR Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Crystals, Oscillators, Resonators - Oscillators
Mfr Skyworks Solutions Inc.
Series Si514
Package Tape & Reel
Product Status Active
Base Resonator Crystal
Type XO (Standard)
Frequency 125 MHz
Function Enable/Disable (Reprogrammable)
Output LVDS
Voltage - Supply 2.5V
Frequency Stability ±50ppm
Temperature Range - Operating -40°C ~ 85°C
Current - Supply (Max) 23mA
Mounting Type Surface Mount
Package / Case 6-SMD, No Lead
Size / Dimension 0.197" L x 0.126" W (5.00mm x 3.20mm)
Base Product Number 514FAA
Standard Package 1,000 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8542.39.0001
Win Source Part Number 856378-514FAA000115BAGR
Ultra Librarian 3D Model Ultra Librarian 514FAA000115BAGR CAD Model

Description

The Si514 series XO (Standard) is a versatile electronic component manufactured by Skyworks Solutions Inc.

  • Frequency: 125 MHz
  • Output: LVDS
  • Frequency Stability: ±50ppm
  • Voltage Supply: 2.5V
  • Current Supply: 23mA (Maximum)
  • Mounting Type: Surface Mount
  • Package: 6-SMD, No Lead
  • Size: 0.197" L x 0.126" W (5.00mm x 3.20mm)
  • Temperature Range: -40°C to 85°C
  • Product Status: Active
  • Moisture Sensitivity Level: 1 (Unlimited)
  • Standard Package: 1,000 pcs
