Same model may have multiple batches, images only for reference.

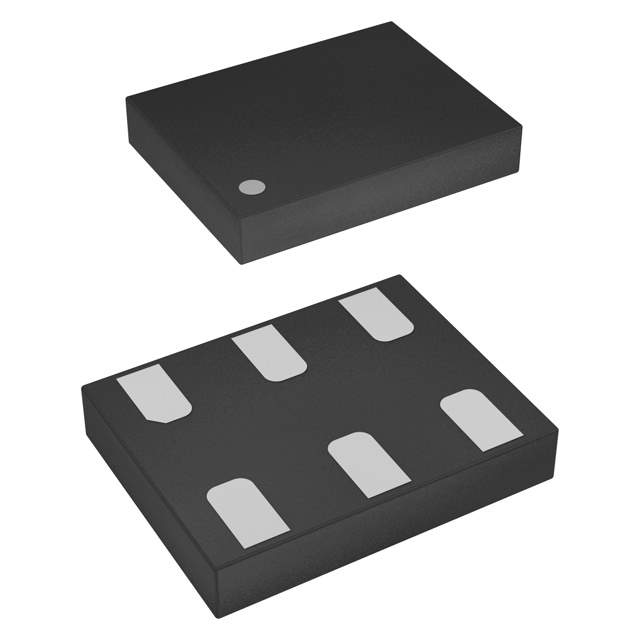

SIT9120AI-1B2-XXE125.000000 Real Image
Same model may have multiple batches, images only for reference.

SIT9120AI-1B2-XXE125.000000

Part No SIT9120AI-1B2-XXE125.000000
Manufacturer SiTIME
Catalog Oscillators
Description MEMS OSC XO 125.0000MHZ LVPECL / 125 MHz XO (Standard) LVPECL Oscillator 2.25V ~ 3.63V Enable/Disable 6-SMD, No Lead
Datasheet
SIT9120AI-1B2-XXE125.000000 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Crystals, Oscillators, Resonators - Oscillators
Mfr SiTime
Series SiT9120
Package Strip
Base Resonator MEMS
Type XO (Standard)
Frequency 125 MHz
Function Enable/Disable
Output LVPECL
Voltage - Supply 2.25V ~ 3.63V
Frequency Stability ±25ppm
Temperature Range - Operating -40°C ~ 85°C
Current - Supply (Max) 69mA
Mounting Type Surface Mount
Package / Case 6-SMD, No Lead
Size / Dimension 0.126" L x 0.098" W (3.20mm x 2.50mm)
Height - Seated (Max) 0.031" (0.80mm)
Standard Package 1
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.39.0001
Win Source Part Number 1351680-SIT9120AI-1B2-XXE125.000000
Ultra Librarian 3D Model Ultra Librarian SIT9120AI-1B2-XXE125.000000 CAD Model

Description

SiT9120AI-1B2-XXE125.000000 is a high-performance XO (Standard) oscillator from SiTime.

  • Type: XO (Standard)
  • Package Size: 0.126" L x 0.098" W (3.20mm x 2.50mm)
  • Height: 0.031" (0.80mm)
  • Frequency: 125 MHz
  • Output: LVPECL
  • Frequency Stability: ±25ppm
  • Current - Supply (Max): 69mA
  • Voltage - Supply: 2.25V to 3.63V
  • Operating Temperature: -40°C to 85°C
  • Technology: MEMS
  • Suitable for: Applications that require precise timing
