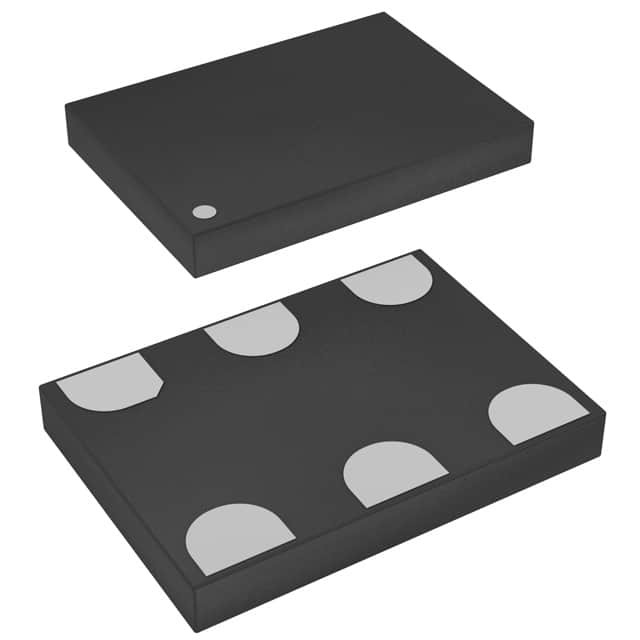

Same model may have multiple batches, images only for reference.
SIT9120AC-1D3-33E150.000000 SiTIME
Same model may have multiple batches, images only for reference.

SIT9120AC-1D3-33E150.000000

Part No SIT9120AC-1D3-33E150.000000
Manufacturer SiTIME
Catalog Oscillators
Description MEMS OSC XO 150.0000MHZ LVPECL / 150 MHz XO (Standard) LVPECL Oscillator 3.3V Enable/Disable 6-SMD, No Lead
Datasheet
SIT9120AC-1D3-33E150.000000 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Crystals, Oscillators, Resonators>Oscillators
Mfr SiTime
Series SiT9120
Package Strip
Base Resonator MEMS
Type XO (Standard)
Frequency 150 MHz
Function Enable/Disable
Output LVPECL
Voltage - Supply 3.3V
Frequency Stability ±50ppm
Temperature Range - Operating -20°C ~ 70°C
Current - Supply (Max) 69mA
Mounting SMD (SMT)
Package / Case 6-SMD, No Lead
Dimension 0.276" L x 0.197" W (7.00mm x 5.00mm)
Height - Seated (Max) 0.039" (1.00mm)
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8542.39.0001
Other Names SIT9120AC-1D3-33E150.000000E,1473-SIT9120AC-1D3-33E150.000000,SIT9120AC-1D3-33E150.000000S,SIT9120AC-1D3-33E150.000000D,SIT9120AC-1D3-33E150.000000T,SIT9120AC-1D3-33E150.000000Y,SIT9120AC-1D3-33E150.000000G,3417-SIT9120AC-1D3-33E150.000000CT-SL,SIT9120AC-1D3-33E150.000000X
Standard Package 1
Win Source Part Number 1024207-SIT9120AC-1D3-33E150.000000
Ultra Librarian 3D Model Ultra Librarian SIT9120AC-1D3-33E150.000000 CAD Model

Description

The SiT9120 series XO (Standard) crystal oscillator is a high-performance device designed for use in various electronic applications.

  • Series: SiT9120
  • Type: XO (Standard) crystal oscillator
  • Frequency: 150 MHz
  • Frequency Stability: ±50ppm
  • Voltage Supply: 3.3V
  • Maximum Current Supply: 69mA
  • Height: 0.039" (1.00mm)
  • Mounting Technology: SMD (SMT)
  • Function: enable/disable
  • Output: LVPECL
  • Package: 6-SMD, No Lead
  • Temperature Range: -20°C to 70°C
