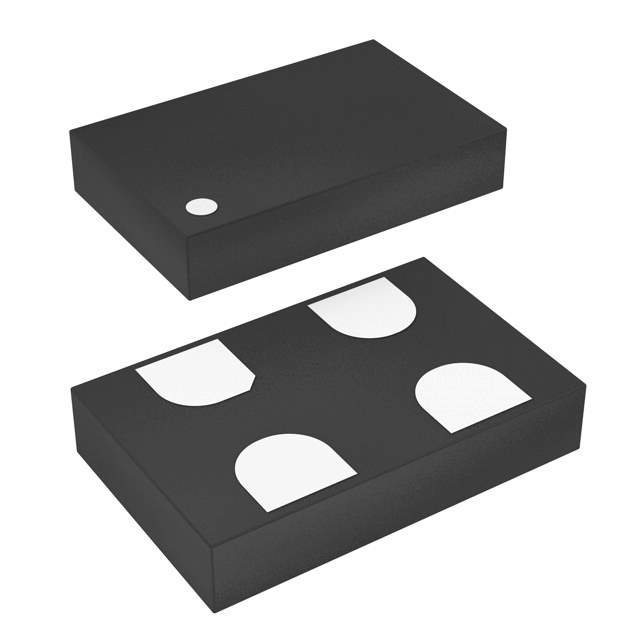

SIT8209AC-33-33E-156.250000 Real Image1 SIT8209AC-33-33E-156.250000 Real Image2
Same model may have multiple batches, images only for reference.
SIT8209AC-33-33E-156.250000 Real Image1 SIT8209AC-33-33E-156.250000 Real Image2
SIT8209AC-33-33E-156.250000 Real Image1 SIT8209AC-33-33E-156.250000 Real Image2
Same model may have multiple batches, images only for reference.

SIT8209AC-33-33E-156.250000

Part No SIT8209AC-33-33E-156.250000
Manufacturer SiTIME
Catalog Oscillators
Datasheet
SIT8209AC-33-33E-156.250000 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Crystals, Oscillators, Resonators>Oscillators
Mfr SiTime
Series SiT8209
Package Strip
Base Resonator MEMS
Type XO (Standard)
Frequency 156.25 MHz
Function Enable/Disable
Output LVCMOS, LVTTL
Voltage - Supply 3.3V
Frequency Stability ±50ppm
Temperature Range - Operating -20°C ~ 70°C
Current - Supply (Max) 36mA
Mounting SMD (SMT)
Package / Case 4-SMD, No Lead
Dimension 0.197" L x 0.126" W (5.00mm x 3.20mm)
Height - Seated (Max) 0.031" (0.80mm)
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.39.0001
Win Source Part Number 1316155-SIT8209AC-33-33E-156.250000
Ultra Librarian 3D Model Ultra Librarian SIT8209AC-33-33E-156.250000 CAD Model

Description

The SiTime SiT8209AC-33-33E-156.250000 is a MEMS-based oscillator with a frequency of 156.25 MHz.

  • Frequency: 156.25 MHz
  • Frequency Stability: ±50ppm
  • MSL Level: 1 (unlimited)
