Same model may have multiple batches, images only for reference.

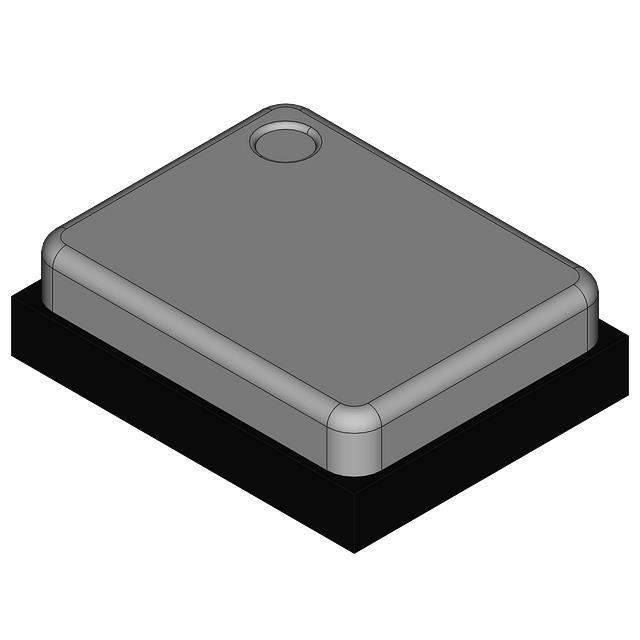

SIT8008AC-13-33E-16.500000E Real Image
Same model may have multiple batches, images only for reference.

SIT8008AC-13-33E-16.500000E

Part No SIT8008AC-13-33E-16.500000E
Manufacturer SiTIME
Catalog Oscillators
Description OSC MEMS 16.5000MHZ LVCMOS SMD / Oscillator MEMS 16.5MHz ±50ppm (Stability) 15pF HCMOS/LVCMOS 55% 3.3V Medical 4-Pin QFN SMD T/R
Datasheet
SIT8008AC-13-33E-16.500000E Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Crystals, Oscillators, Resonators
Manufacturer SiTIME
Series SiT8008
Packaging Reel package
Type MEMS (Silicon)
Frequency 16.5MHz
Function Enable/Disable
Output LVCMOS
Operating Supply Voltage 3.3V
Frequency Stability ±50ppm
Operating Temperature Range -20°C ~ 70°C
Maximum Supply Current 4.5mA
Mounting SMD
Package 4-SMD, No Lead
Dimension 0.098" L x 0.079" W (2.50mm x 2.00mm)
Height - Seated (Maximum) 0.031" (0.80mm)
Current - Supply (Disable) (Maximum) 4.2mA
Win Source Part Number 794416-SIT8008AC-13-33E-16.500000E
Popularity Medium
Supply and Demand Status Limited
Quantity per package 1k pcs
Introduction Date September 04, 2012
ECCN EAR99
Country of Origin Malaysia, Taiwan, Thailand
Halogen Free Compliant
Estimated EOL Date 2022
Ultra Librarian 3D Model Ultra Librarian SIT8008AC-13-33E-16.500000E CAD Model

Description

The SIT8008AC-13-33E-16.500000E is a MEMS (Silicon) electronic component from SiTIME.

  • Category: Crystals, Oscillators, Resonators
  • Series: SiT8008
  • Supply and Demand Status: Limited
  • Frequency: 16.5MHz
  • Output: LVCMOS
  • Package Dimensions: 0.098" L x 0.079" W (2.50mm x 2.00mm)
  • Operating Temperature: -20°C ~ 70°C
  • Compliance: Halogen-Free
