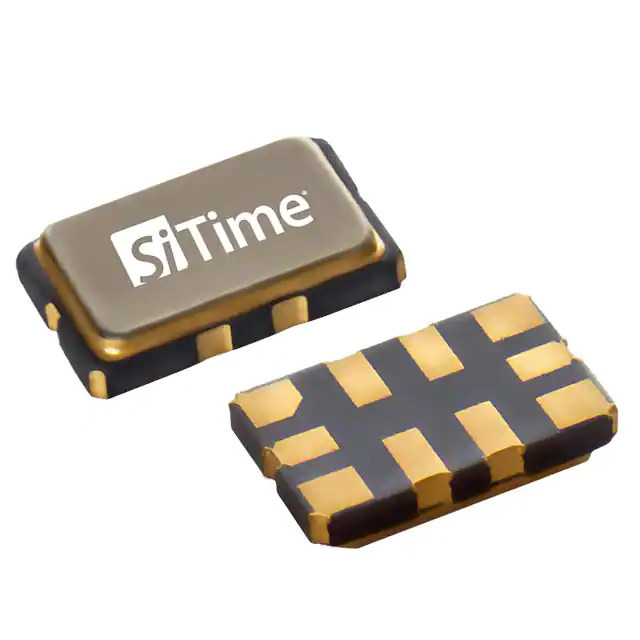

SIT5156AI-FK-33N0-10.000000 SiTIME
Same model may have multiple batches, images only for reference.

SIT5156AI-FK-33N0-10.000000

Part No SIT5156AI-FK-33N0-10.000000
Manufacturer SiTIME
Catalog Oscillators
Description MEMS OSC TCXO 10.0000MHZ LVCMOS / 10 MHz TCXO LVCMOS Oscillator 3.3V 10-SMD, No Lead
Datasheet
SIT5156AI-FK-33N0-10.000000 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Crystals, Oscillators, Resonators - Oscillators
Mfr SiTime
Series SiT5156, Elite Platform™
Package Strip
Product Status Active
Base Resonator MEMS
Type TCXO
Frequency 10 MHz
Function -
Output LVCMOS
Voltage - Supply 3.3V
Frequency Stability ±500ppb
Absolute Pull Range (APR) -
Temperature Range - Operating -40°C ~ 85°C
Spread Spectrum Bandwidth -
Current - Supply (Max) 53mA
Ratings -
Mounting Type Surface Mount
Package / Case 10-SMD, No Lead
Size / Dimension 0.197" L x 0.126" W (5.00mm x 3.20mm)
Height - Seated (Max) 0.042" (1.06mm)
Current - Supply (Disable) (Max) -
Base Product Number SIT5156
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.39.0001
Win Source Part Number 1354954-SIT5156AI-FK-33N0-10.000000
Ultra Librarian 3D Model Ultra Librarian SIT5156AI-FK-33N0-10.000000 CAD Model

Description

The SiT5156AI-FK-33N0-10.000000 is a TCXO (Temperature Compensated Crystal Oscillator) from SiTime's SiT5156 series, which is part of their Elite Platform™.

  • Series: SiT5156 Elite Platform™
  • Frequency: 10 MHz
  • Voltage Supply: 3.3V
  • Base Resonator: MEMS (Micro-Electro-Mechanical Systems)
  • Output: LVCMOS
  • Frequency Stability: ±500ppb
  • Size: 0.197" L x 0.126" W (5.00mm x 3.20mm)
  • Seated Height: 0.042" (1.06mm)
  • Mounting Type: Surface Mount
  • Current Supply: 53mA
  • Package: 10-SMD, no lead
  • Operating Temperature: -40°C to 85°C
  • Product Status: Active
  • MSL: Unlimited
  • REACH: Unaffected
