Same model may have multiple batches, images only for reference.

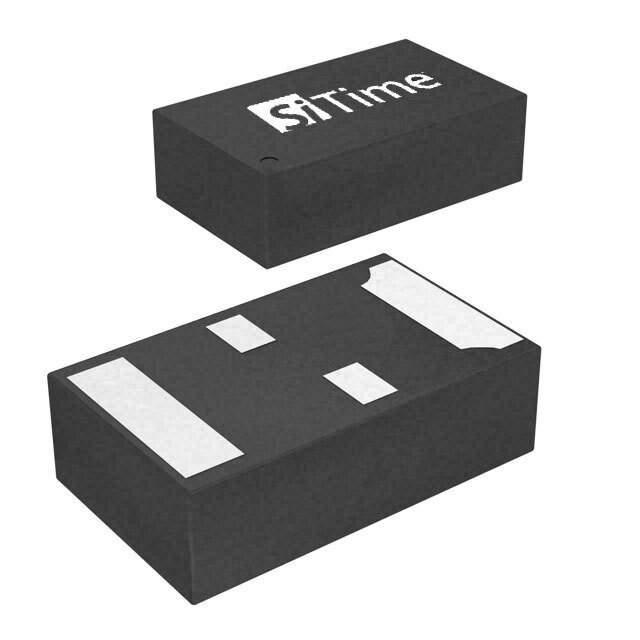

SIT1630AI-H4-DCC-32.768G Real Image
Same model may have multiple batches, images only for reference.

SIT1630AI-H4-DCC-32.768G

Part No SIT1630AI-H4-DCC-32.768G
Manufacturer SiTIME
Catalog Oscillators
Description MEMS OSC XO 32.7680KHZ LVCMOS / 32.768 kHz XO (Standard) LVCMOS Oscillator 1.5V ~ 3.63V 4-SMD, No Lead
Datasheet
SIT1630AI-H4-DCC-32.768G Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Crystals, Oscillators, Resonators>Oscillators
Mfr SiTime
Series SiT1630
Package Tape & Reel
Base Resonator MEMS
Type XO (Standard)
Frequency 32.768 kHz
Output LVCMOS
Voltage - Supply 1.5V ~ 3.63V
Frequency Stability ±100ppm
Temperature Range - Operating -40°C ~ 85°C
Current - Supply (Max) 1.85µA
Mounting SMD (SMT)
Package / Case 4-SMD, No Lead
Dimension 0.079" L x 0.047" W (2.00mm x 1.20mm)
Height - Seated (Max) 0.024" (0.60mm)
Base Product Number SIT1630
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.39.0001
Other Names -1473-1107-1,-1473-1107-2,1473-1107-1,1473-1107-2,-1473-1107-6,1473-1107-6
Standard Package 250
Win Source Part Number 998973-SIT1630AI-H4-DCC-32.768G
Ultra Librarian 3D Model Ultra Librarian SIT1630AI-H4-DCC-32.768G CAD Model

Description

The SiT1630 is a standard XO (Crystal Oscillator) that belongs to the SiT1630 series.

  • Frequency: 32.768 kHz
  • Package: 4-SMD, no lead
  • Frequency Stability: ±100ppm
  • Absolute Pull Range (APR): -
  • Output: LVCMOS
  • Voltage Supply: 1.5V to 3.63V
  • Maximum Current Supply: 1.85μA
  • Disable Current Supply: -μA
  • Package Dimension: 0.079” L x 0.047” W (2.00mm x 1.20mm)
  • Operating Temperature Range: -40°C to 85°C
  • Manufacturer: SiTime
  • REACH Status: Unaffected
