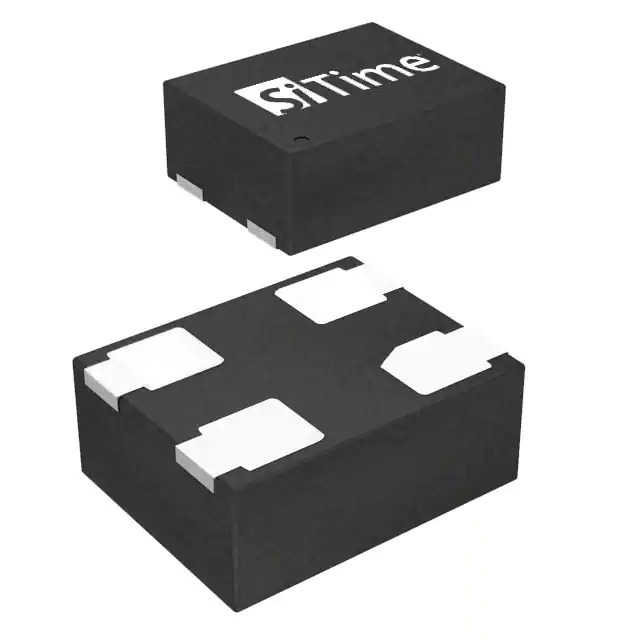

SIT1602BI-72-25E-25.000000 SiTIME
Same model may have multiple batches, images only for reference.

SIT1602BI-72-25E-25.000000

Part No SIT1602BI-72-25E-25.000000
Manufacturer SiTIME
Catalog Oscillators
Description MEMS OSC XO 25.0000MHZ H/LV-CMOS / 25 MHz XO (Standard) HCMOS, LVCMOS Oscillator 2.5V Enable/Disable 4-SMD, No Lead
Datasheet
SIT1602BI-72-25E-25.000000 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Crystals, Oscillators, Resonators - Oscillators
Mfr SiTime
Series SiT1602B
Package Strip
Product Status Active
Base Resonator MEMS
Type XO (Standard)
Frequency 25 MHz
Function Enable/Disable
Output HCMOS, LVCMOS
Voltage - Supply 2.5V
Frequency Stability ±25ppm
Absolute Pull Range (APR) -
Temperature Range - Operating -40°C ~ 85°C
Spread Spectrum Bandwidth -
Current - Supply (Max) 4.2mA
Ratings -
Mounting Type Surface Mount
Package / Case 4-SMD, No Lead
Size / Dimension 0.079" L x 0.063" W (2.00mm x 1.60mm)
Height - Seated (Max) 0.031" (0.80mm)
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8542.39.0001
Win Source Part Number 1354966-SIT1602BI-72-25E-25.000000
Ultra Librarian 3D Model Ultra Librarian SIT1602BI-72-25E-25.000000 CAD Model

Description

The SiTime SiT1602BI is a strip package crystal oscillator from SiTime with a frequency of 25 MHz.

  • Series: SiT1602B
  • Operating Temperature: -40°C to 85°C
  • Voltage Supply: 2.5V
  • Supply Current: 4.2mA (Max)
  • Size: 0.079" L x 0.063" W (2.00mm x 1.60mm)
  • Height: 0.031" (0.80mm)
  • Outputs: HCMOS and LVCMOS
  • Frequency Stability: ±25ppm
  • Product Status: Active
  • Package: 4-SMD, No Lead
  • Mounting Type: Surface Mount
  • Function: Enable/Disable
  • ECCN: EAR99
