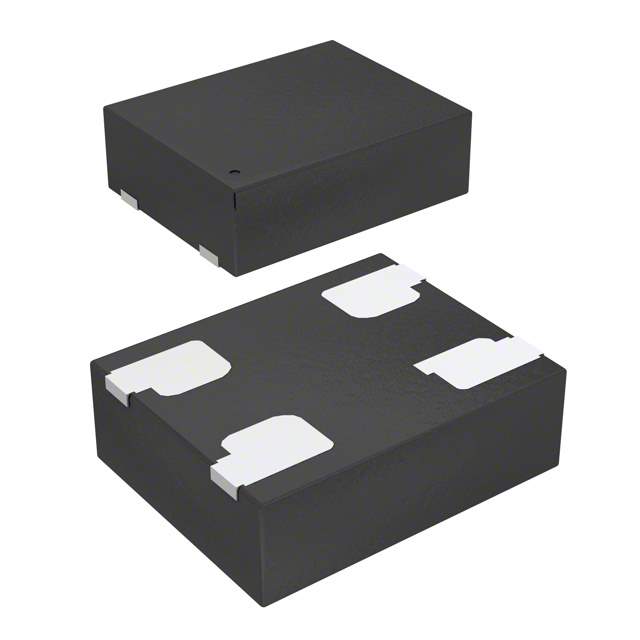

SIT1602BI-12-33E-25.000625

Part No SIT1602BI-12-33E-25.000625
Manufacturer SiTIME
Catalog Oscillators
Description MEMS OSC XO 25.000625MHZ H/LV-CM / 25.000625 MHz XO (Standard) HCMOS, LVCMOS Oscillator 3.3V Enable/Disable 4-SMD, No Lead
Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Crystals, Oscillators, Resonators>Oscillators
Mfr SiTime
Series SiT1602B
Package Strip
Base Resonator MEMS
Type XO (Standard)
Frequency 25.000625 MHz
Function Enable/Disable
Output HCMOS, LVCMOS
Voltage - Supply 3.3V
Frequency Stability ±25ppm
Temperature Range - Operating -40°C ~ 85°C
Current - Supply (Max) 4.5mA
Mounting SMD (SMT)
Package / Case 4-SMD, No Lead
Dimension 0.098" L x 0.079" W (2.50mm x 2.00mm)
Height - Seated (Max) 0.031" (0.80mm)
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.39.0001
Other Names 1473-SIT1602BI-12-33E-25.000625S,1473-SIT1602BI-12-33E-25.000625T,1473-SIT1602BI-12-33E-25.000625T-ND,1473-SIT1602BI-12-33E-25.000625X-ND,1473-SIT1602BI-12-33E-25.000625Y-ND,SIT1602BI-12-33E-25.000625Y,SIT1602BI-12-33E-25.000625X,SIT1602BI-12-33E-25.000625T,1473-SIT1602BI-12-33E-25.000625Y,SIT1602BI-12-33E-25.000625S,1473-SIT1602BI-12-33E-25.000625X,1473-SIT1602BI-12-33E-25.000625E,1473-SIT1602BI-12-33E-25.000625D,1473-SIT1602BI-12-33E-25.000625,3417-SIT1602BI-12-33E-25.000625,SIT1602BI-12-33E-25.000625G,SIT1602BI-12-33E-25.000625E,1473-SIT1602BI-12-33E-25.000625D-ND,1473-SIT1602BI-12-33E-25.000625E-ND,SIT1602BI-12-33E-25.000625D,1473-SIT1602BI-12-33E-25.000625G-ND,1473-SIT1602BI-12-33E-25.000625G
Standard Package 1
Win Source Part Number 1093148-SIT1602BI-12-33E-25.000625
Ultra Librarian 3D Model Ultra Librarian SIT1602BI-12-33E-25.000625 CAD Model

Description

The SiT1602B series from SiTime is a high-performance XO oscillator that is designed for use in various electronic circuits.

  • Type: Standard XO oscillator
  • Frequency: 25.000625 MHz
  • Frequency Stability: ±25ppm
  • Current Supply: 4.5mA
  • Package: 4-SMD, no lead
  • Operating Temperature Range: -40°C to 85°C
  • Enable/Disable: HCMOS/LVCMOS output
  • Spread Spectrum Bandwidth: 0Hz
