Same model may have multiple batches, images only for reference.

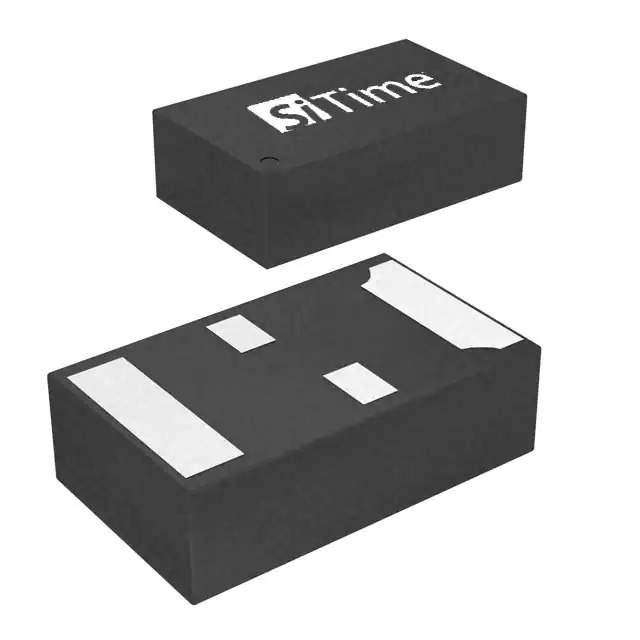

SIT1533AI-H4-DCC-32.768D Real Image
Same model may have multiple batches, images only for reference.

SIT1533AI-H4-DCC-32.768D

Part No SIT1533AI-H4-DCC-32.768D
Manufacturer SiTIME
Catalog Oscillators
Description MEMS OSC XO 32.7680KHZ LVCMOS
Datasheet
SIT1533AI-H4-DCC-32.768D Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Crystals, Oscillators, Resonators - Oscillators
Mfr SiTime
Series SiT1533
Package Tape & Reel
Product Status Active
Base Resonator MEMS
Type XO (Standard)
Frequency 32.768 kHz
Output LVCMOS
Voltage - Supply 1.2V ~ 3.63V
Frequency Stability ±100ppm
Temperature Range - Operating -40°C ~ 85°C
Current - Supply (Max) 1.4µA
Mounting Type Surface Mount
Package / Case 4-SMD, No Lead
Size / Dimension 0.079" L x 0.047" W (2.00mm x 1.20mm)
Height - Seated (Max) 0.024" (0.60mm)
Base Product Number SIT1533
Standard Package 3,000 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.39.0001
Win Source Part Number 849262-SIT1533AI-H4-DCC-32.768D
Ultra Librarian 3D Model Ultra Librarian SIT1533AI-H4-DCC-32.768D CAD Model

Description

The SiT1533 Oscillator is a compact and efficient component designed for use in crystals, oscillators, and resonators.

  • Frequency: 32.768kHz
  • Frequency Stability: ±100ppm
  • Output: LVCMOS
  • Voltage Supply: 1.2V to 3.63V
  • Mounting: Surface Mount
  • Package: 4-SMD, no lead
  • Temperature Range: -40°C to 85°C
