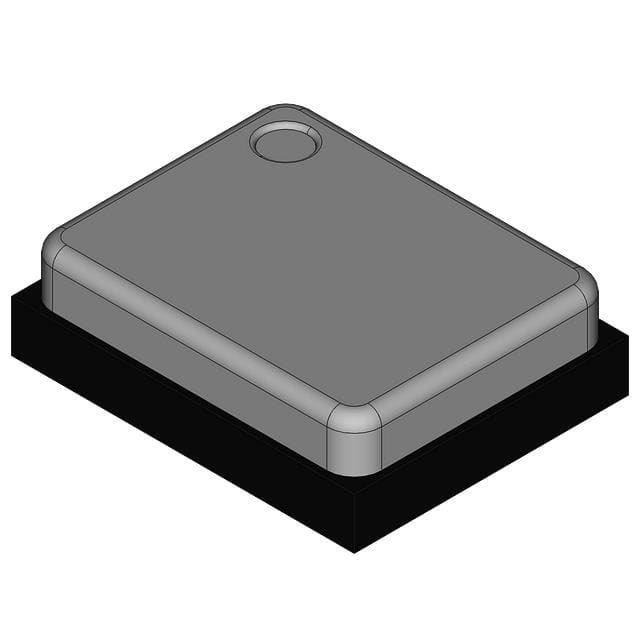

Same model may have multiple batches, images only for reference.
CS00119AA-13-18E-72.500000E SiTIME
Same model may have multiple batches, images only for reference.

CS00119AA-13-18E-72.500000E

Part No CS00119AA-13-18E-72.500000E
Manufacturer SiTIME
Catalog Oscillators
Description MEMS OSC XO 72.5000MHZ LVCMOS
Datasheet
CS00119AA-13-18E-72.500000E Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Crystals, Oscillators, Resonators - Oscillators
Mfr SiTime
Series SiT9025
Package Tape & Reel
Product Status Active
Base Resonator MEMS
Type XO (Standard)
Frequency 72.5 MHz
Function Enable/Disable
Output LVCMOS
Voltage - Supply 1.8V
Frequency Stability ±50ppm
Temperature Range - Operating -40°C ~ 125°C
Current - Supply (Max) 7mA
Ratings AEC-Q100
Mounting Type Surface Mount
Package / Case 4-SMD, No Lead
Size / Dimension 0.098" L x 0.079" W (2.50mm x 2.00mm)
Height - Seated (Max) 0.031" (0.80mm)
Base Product Number CS00119
Standard Package 1,000 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.39.0001
Win Source Part Number 1163245-CS00119AA-13-18E-72.500000E
Ultra Librarian 3D Model Ultra Librarian CS00119AA-13-18E-72.500000E CAD Model

Description

The SiT9025-CS00119AA-13-18E-72.500000E is a standard XO (Crystal Oscillator) from SiTime.

  • Mounting Type: Surface Mount
  • Size: 0.098" L x 0.079" W (2.50mm x 2.00mm)
  • Seated Height: 0.031" (0.80mm)
  • Frequency: 72.5 MHz
  • Frequency Stability: ±50ppm
  • Output: LVCMOS
  • Package: 4-SMD, No Lead
  • Temperature Range: -40°C to 125°C
  • Power Consumption: Low
  • Product Status: Active
