Same model may have multiple batches, images only for reference.

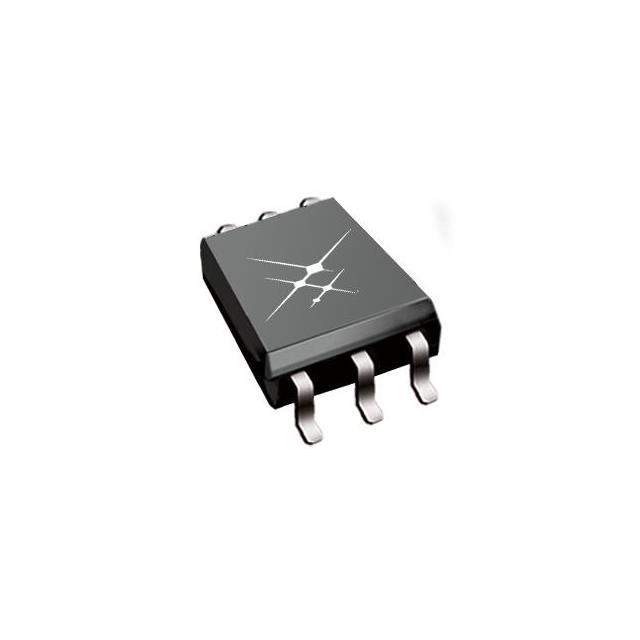

SI8261BBD-C-IS Real Image
Same model may have multiple batches, images only for reference.

SI8261BBD-C-IS

Part No SI8261BBD-C-IS
Manufacturer Silicon Labs
Catalog Isolators - Gate Drivers
Description DGTL ISO 5KV GATE DRIVER 6SDIP / KV LED EMULATOR INPUT, 4.0 A ISOLATED GATE DRIVERS
Datasheet
SI8261BBD-C-IS Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Isolators
Manufacturer Silicon Labs
Series Automotive, AEC-Q100
Packaging Tube
Technology Capacitive Coupling
Number of Channels 1
Voltage - Isolation 5000Vrms
Common Mode Transient Immunity (Minimum) 35kV/μs
Propagation Delay tpLH / tpHL (Maximum) 60ns, 50ns
Pulse Width Distortion (Maximum) 28ns
Rise / Fall Time (Typ) 5.5ns, 8.5ns
Current - Output High, Low 500mA, 1.2A
Current - Peak Output 4A
Voltage - Forward (Vf) (Typ) 2.8V (Maximum)
Current - DC Forward (If) (Maximum) 30mA
Operating Supply Voltage 9.4 V ~ 30 V
Operating Temperature Range -40°C ~ 125°C
Mounting SMD
Package 6-SOIC (0.295", 7.50mm Width)
Manufacturer Package 6-SDIP
Approvals CQC, CSA, UR, VDE
Win Source Part Number 794341-SI8261BBD-C-IS
Popularity Medium
Supply and Demand Status Balance
Family Name Si8261B
ECCN EAR99
Country of Origin Thailand
Halogen Free Compliant
Estimated EOL Date 2028
Ultra Librarian 3D Model Ultra Librarian SI8261BBD-C-IS CAD Model

Description

The Silicon Labs SI8261BBD-C-IS is an electronic component that falls under the category of isolators.

  • Technology: Capacitive coupling
  • Output High, Low Current: 500mA, 1.2A
  • Operating Supply Voltage: 9.4 V ~ 30 V
  • Voltage - forward (Vf) (Typ): 2.8V (Maximum)
  • Rise/Fall Time (typ): 5.5ns, 8.5ns
  • Number of Channels: 1
  • Package: 6-SOIC (0.295", 7.50mm Width)
  • ECCN: EAR99
