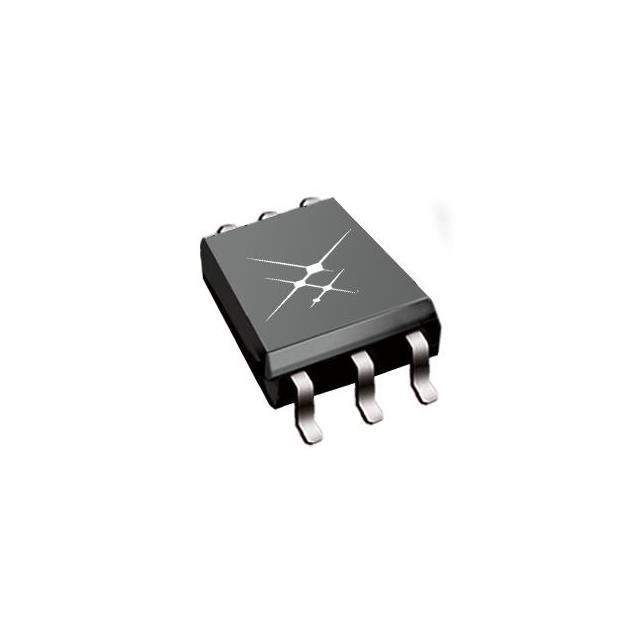

SI8261BAD-C-IS Real Image
Same model may have multiple batches, images only for reference.

SI8261BAD-C-IS

Part No SI8261BAD-C-IS
Manufacturer Silicon Labs
Catalog Isolators - Gate Drivers
Description DGTL ISO 5KV GATE DRIVER 6SDIP
Datasheet
SI8261BAD-C-IS Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Isolators
Manufacturer Silicon Labs
Packaging Tube/Rail
Status Active
Technology Capacitive Coupling
Number of Channels 1
Isolation Voltage 5000Vrms
Common Mode Transient Immunity (Min) 35kV/μs
Propagation Delay tpLH / tpHL (Max) 60ns, 50ns
Pulse Width Distortion (Max) 28ns
Rise and Fall Time 5.5ns, 8.5ns
Current - Output High, Low 500mA, 1.2A
Current - Peak Output 4A
Forward Voltage 2.8V (Max)
Continuous forward current- Max 30mA
Supply Voltage - Operating 6.5 V to 30 V
Temperature Range - Operating -40°C to 125°C
Mounting SMD (SMT)
Case / Package 6-SDIP
Approvals CQC, CSA, UR, VDE
Win Source Part Number 1096230-SI8261BAD-C-IS
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian SI8261BAD-C-IS CAD Model

Description

The Silicon Labs 1096230-SI8261BAD-C-IS is an isolator with a capacitive coupling technology.

  • Channel Count: single
  • Output High Current: 500mA
  • Output Low Current: 1.2A
  • Forward Voltage (max): 2.8V
  • Common Mode Transient Immunity (min): 35kV/μs
  • Operating Supply Voltage: 6.5 V to 30 V
  • Operating Supply Current: 30mA (continuous forward current- Max)
  • Case: 6-SDIP
  • Operating Temperature: -40°C to 125°C
  • Supply and Demand Status: balanced
  • Approvals: CQC, CSA, UR, and VDE
