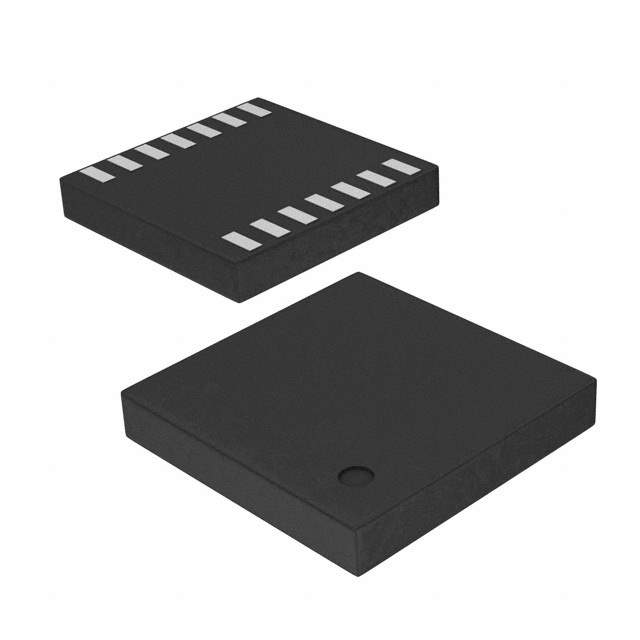

SI8236AA-D-IM Real Image
Same model may have multiple batches, images only for reference.

SI8236AA-D-IM

Part No SI8236AA-D-IM
Manufacturer Silicon Labs
Catalog Isolators - Gate Drivers
Description DGTL ISO 1KV 2CH GATE DRVR 14LGA
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Silicon Labs
Packaging Tube
Part Status Obsolete (End Of Life)
Technology Capacitive Coupling
Number of Channels 2
Voltage - Isolation 1000Vrms
Common Mode Transient Immunity (Min) 20kV/μs
Propagation Delay tpLH / tpHL (Maximum) 60ns, 60ns
Pulse Width Distortion (Maximum) 5.6ns
Rise / Fall Time (Typ) 12ns, 12ns (Maximum)
Current - Output High, Low 2A, 4A
Current - Peak Output 4A
Voltage - Output Supply 6.5V ~ 24V
Temperature Range - Operating -40°C ~ 125°C
Mounting Style SMD
Manufacturer Package 14-VFLGA
Supplier Device Package 14-LGA (5x5)
Approvals CQC, CSA, UR, VDE
Manufacturer Pack Quantity 60
MSL Level 3 (168 Hours)
Popularity Medium
Supply and Demand Status Limited
Win Source Part Number 810430-SI8236AA-D-IM
Ultra Librarian 3D Model Ultra Librarian SI8236AA-D-IM CAD Model

Description

The Silicon Labs 810430-SI8236AA-D-IM is a high-performance, dual-channel digital isolator with a voltage isolation of 1000Vrms.

  • Channels: Dual
  • Isolation Voltage: 1000Vrms
  • Temperature Range: -40°C to 125°C
  • Package: 14-LGA (5x5)
  • Popularity: Medium
  • Supply/Demand: Limited
  • Supply Voltage: 6.5V to 24V
