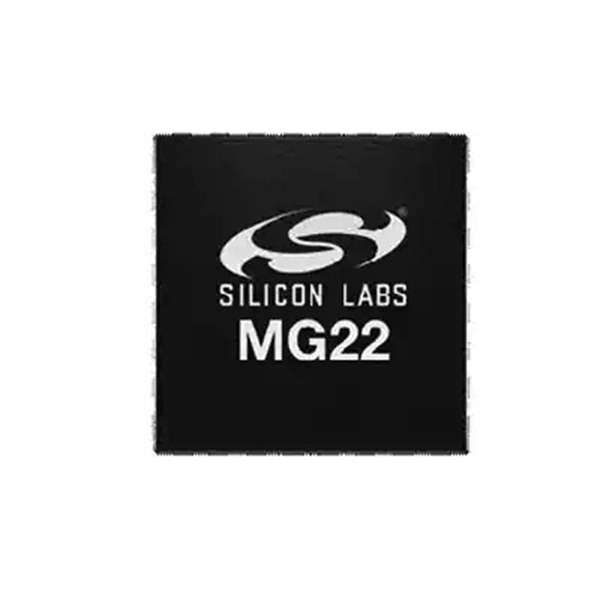

EFR32MG22C224F512IM32-C Silicon Labs
Same model may have multiple batches, images only for reference.

EFR32MG22C224F512IM32-C

Part No EFR32MG22C224F512IM32-C
Manufacturer Silicon Labs
Catalog RF Transceiver ICs
Description MIGHTY GECKO, QFN32, SECURE BOOT / IC RF TxRx + MCU WiFi Bluetooth v5.2, Zigbee® 2.4GHz 32-VFQFN Exposed Pad
Datasheet
EFR32MG22C224F512IM32-C Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category RF and Wireless - RF Transceiver ICs
Mfr Silicon Labs
Series -
Package Tube
Product Status Active
Type TxRx + MCU
RF Family/Standard WiFi
Protocol Bluetooth v5.2, Zigbee®
Modulation 2-FSK, 2-GFSK, DSSS, GFSK, GMSK, MSK, O-QPSK
Frequency 2.4GHz
Data Rate (Max) 2Mbps
Power - Output 6dBm
Sensitivity -106.7dBm
Memory Size 512kB Flash, 32kB RAM
Serial Interfaces I²C, I²S, SPI, IrDA, PDM, UART, USART
GPIO 18
Voltage - Supply 1.71V ~ 3.8V
Current - Receiving 3.7mA ~ 4.6mA
Current - Transmitting 4.1mA ~ 8.5mA
Temperature Range - Operating -40°C ~ 125°C (TA)
Mounting Type Surface Mount
Package / Case 32-VFQFN Exposed Pad
Supplier Device Package 32-QFN (4x4)
Base Product Number EFR32MG22C224
MSL Level 2 (1 Year)
ECCN 5A992C
HTSUS 8542.39.0001
Win Source Part Number 1356695-EFR32MG22C224F512IM32-C
Ultra Librarian 3D Model Ultra Librarian EFR32MG22C224F512IM32-C CAD Model

Description

The EFR32MG22C224F512IM32-C is an RF transceiver IC from Silicon Labs.

  • Frequency: 2.4GHz
  • Protocols: Bluetooth v5.2, Zigbee
  • Voltage - Supply: 1.71V ~ 3.8V
  • Memory Size: 512kB Flash, 32kB RAM
  • Serial Interfaces: I²C, I²S, SPI, IrDA, PDM, UART, USART
  • Power - Output: 6dBm
  • Sensitivity: -106.7dBm
  • Mounting Type: Surface Mount
  • Package / Case: 32-VFQFN Exposed Pad
  • Part Status: Active
