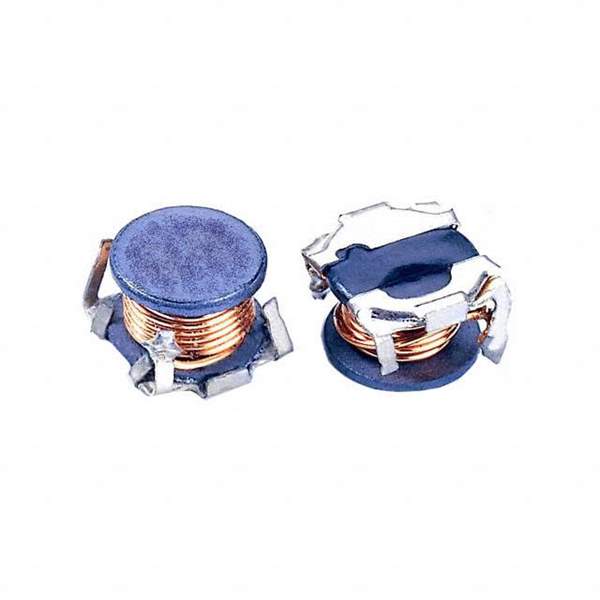

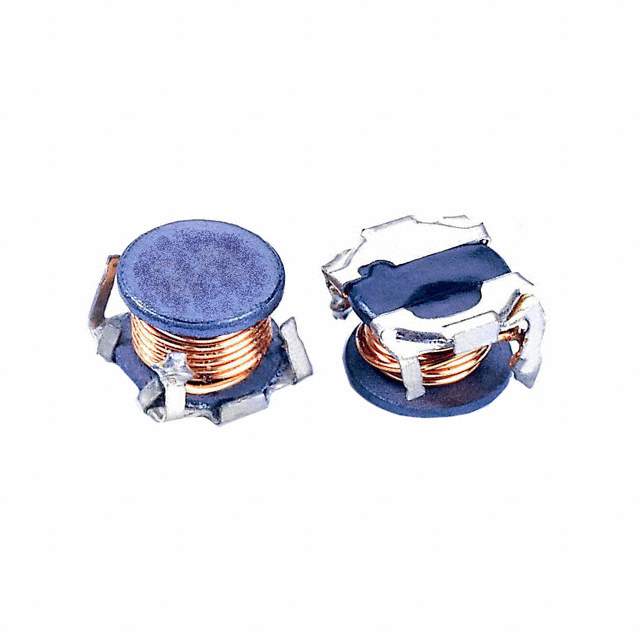

SCH74-820 Real Image
Same model may have multiple batches, images only for reference.

SCH74-820

Part No SCH74-820
Manufacturer Signal Transformer
Catalog Fixed Inductors
Description FIXED IND 82UH 1.23A 480MOHM SMD / 82 µH Unshielded Wirewound Inductor 1.23 A 480mOhm Max Nonstandard
Datasheet
SCH74-820 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr Signal Transformer
Series SCH74
Package Tape & Reel (TR)
Product Status Obsolete
Type Wirewound
Inductance 82 µH
Tolerance ±10%
Current Rating (Amps) 1.23 A
Current - Saturation (Isat) 920mA
Shielding Unshielded
DC Resistance (DCR) 480mOhm Max
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 1 kHz
Mounting SMD (SMT)
Package / Case Nonstandard
Dimension 0.315" L x 0.287" W (8.00mm x 7.30mm)
Height - Seated (Max) 0.205" (5.20mm)
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.8000
Standard Package 1,000
Win Source Part Number 1224000-SCH74-820
Ultra Librarian 3D Model Ultra Librarian SCH74-820 CAD Model

Description

The SCH74 series wirewound inductor is a fixed inductor that is designed to work in a wide range of electronic applications.

  • Shielding: Unshielded
  • Inductance: 82 µH with a tolerance of ±10%
  • Maximum Seated Height: 0.205" (5.20mm)
  • DC Resistance (DCR): 480mOhm Max
  • Mounting: SMD (SMT) technology
  • Current Rating: 1.23 A
  • Temperature Range: -40°C ~ 125°C
  • Packaging: Tape & Reel (TR)
