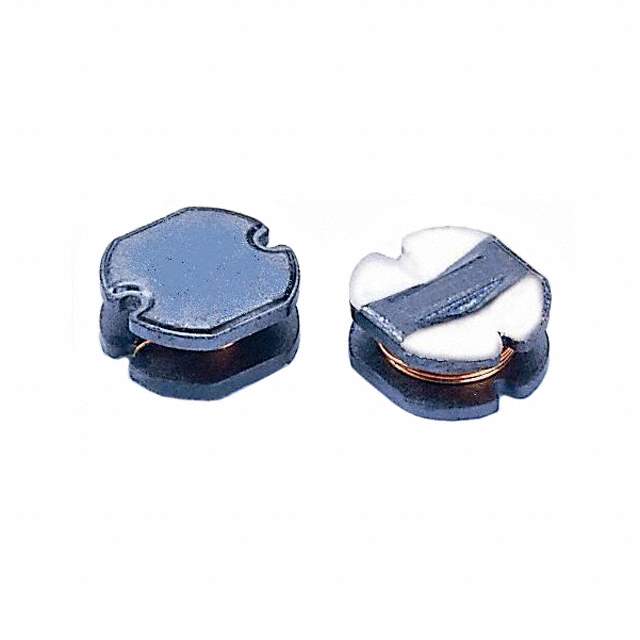

Same model may have multiple batches, images only for reference.

SC73-120

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	SC73-120
Manufacturer	Signal Transformer
Catalog	Fixed Inductors
Description	FIXED IND 12UH 2.2A 90 MOHM SMD / 12 µH Unshielded Wirewound Inductor 2.2 A 90mOhm Max Nonstandard
Datasheet	SC73-120 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Inductors, Coils, Chokes>Fixed Inductors
Mfr	Signal Transformer
Series	SC73
Package	Tape & Reel (TR)
Type	Wirewound
Inductance	12 µH
Tolerance	±20%
Current Rating (Amps)	2.2 A
Current - Saturation (Isat)	1.39A
Shielding	Unshielded
DC Resistance (DCR)	90mOhm Max
Temperature Range - Operating	-40°C ~ 125°C
Inductance Frequency - Test	2.52 MHz
Mounting	SMD (SMT)
Package / Case	Nonstandard
Dimension	0.319" L x 0.287" W (8.10mm x 7.30mm)
Height - Seated (Max)	0.150" (3.80mm)
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.50.8000
Standard Package	1,000
Win Source Part Number	1132727-SC73-120
Ultra Librarian 3D Model	Ultra Librarian SC73-120 CAD Model

Alternative Products

Description

The SC73-120 electronic component is manufactured by Signal Transformer.

Product: SC73-120
Type: Wirewound Fixed Inductor
Inductance: 12 μH
Tolerance: ±20%
Current Rating (Amps): 2.2 A
DC Resistance (DCR): 90mOhm Max
Mounting Type: SMD (SMT)
Package / Case: Nonstandard
Height - Seated (Max): 0.150" (3.80mm)
Dimension: 0.319" L x 0.287" W (8.10mm x 7.30mm)
Win Source Part Number: 1132727-SC73-120
Standard Package: 1,000
ECCN: EAR99
REACH Status: REACH unaffected
HTSUS: 8504.50.8000
