Same model may have multiple batches, images only for reference.

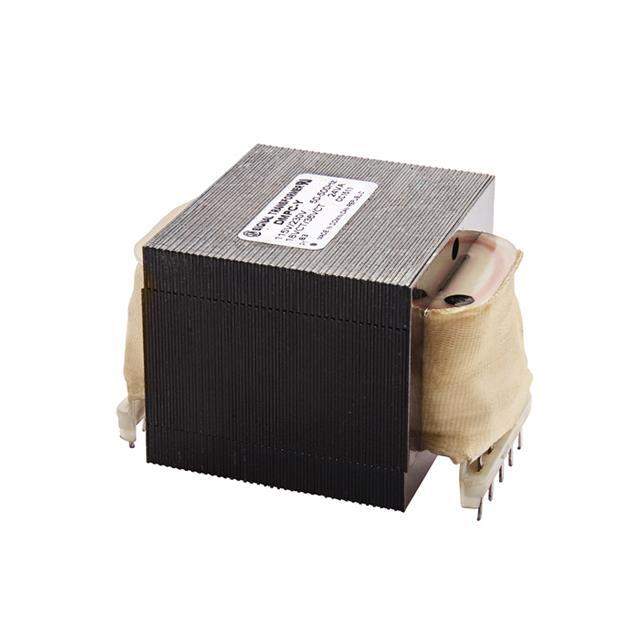

DMPC-X-15 Real Image
Same model may have multiple batches, images only for reference.

DMPC-X-15

Part No DMPC-X-15
Manufacturer Signal Transformer
Catalog Power Transformers
Description PWR XFMR LAMINATED 10VA TH /
Datasheet
DMPC-X-15 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Transformers>Power Transformers
Mfr Signal Transformer
Series DMPC
Package Bulk
Type Laminated Core
Voltage - Primary 115V, 230V
Voltage - Secondary (Full Load) Parallel 5V, Series 15V
Current - Output (Max) Parallel 360mA, Series 50mA
Primary Winding(s) Dual
Secondary Winding(s) Dual
Center Tap Yes
Power - Max 10VA
Mounting Type Through Hole
Termination Style PC Pin
Dimension 47.60mm L x 36.50mm W
Height - Seated (Max) 41.70mm
Voltage - Isolation 1500Vrms
Weight 0.56 lb (254.01 g)
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.31.4035
Other Names 595-1895,DMPC-X-15-ND
Standard Package 50
Win Source Part Number 1202784-DMPC-X-15
Ultra Librarian 3D Model Ultra Librarian DMPC-X-15 CAD Model

Description

The DMPC-X-15 is a laminated core power transformer manufactured by Signal Transformer.

  • Package: Bulk
  • Standard Package: 50
  • Maximum Power: 10VA
  • Isolation Voltage: 1500Vrms
  • Primary Voltage: 115V and 230V
  • Secondary Voltage: 5V and 15V in parallel and series respectively
