Same model may have multiple batches, images only for reference.

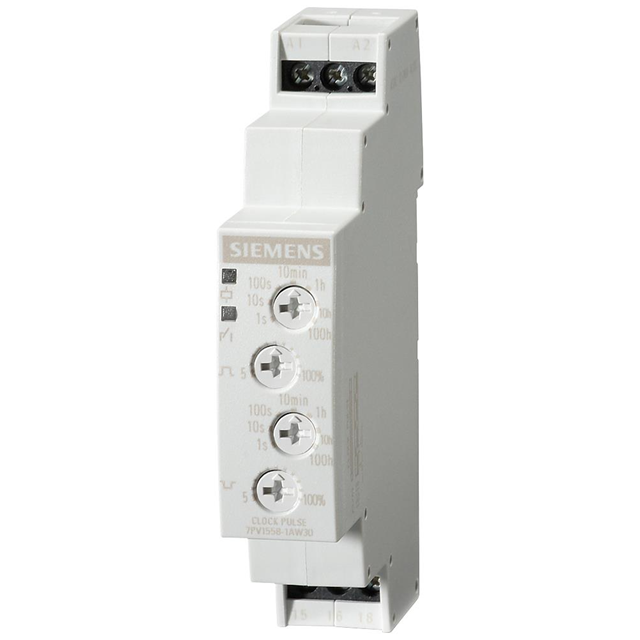

7PV1558-1AW30 Real Image
Same model may have multiple batches, images only for reference.

7PV1558-1AW30

Part No 7PV1558-1AW30
Manufacturer Siemens
Catalog Industrial Equipment
Description Time Relay, Clock-pls Relay, AC24V, DC240V ; 7PV15581AW30
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Mounting SMD (SMT)
Case / Package 100
Depth 66.7 mm
Length 90 mm
Maximum Operating Temperature 55 °C
Min Operating Temperature -25 °C
Mount DIN Rail
Number of Contacts 1
Operating Supply Voltage 240 V
RoHS Compliant
Switching Current 1.5 A
Termination Screw
Width 17.5 mm
Win Source Part Number 1103587-7PV1558-1AW30
Categories Industrial Equipment
Manufacturer Siemens
Popularity Low
Supply and Demand Status Shortage
Ultra Librarian 3D Model Ultra Librarian 7PV1558-1AW30 CAD Model

Description

The Siemens screw termination electronic component is a reliable and efficient product that is suitable for industrial equipment.

  • Length: 90mm
  • Width: 17.5mm
  • Mounting Technology: SMD (SMT)
  • Maximum Operating Temperature: 55 °C
  • Switching Current: 1.5 A
  • Operating Supply Voltage: 240 V
  • Mounting Type: DIN rail
  • RoHS Compliant: Yes
  • Case/Package: 100
  • Alternative parts (cross-reference): 7PV15181AW30, 7PV15121AP30, 7PV15131AP307PV15581AW30
