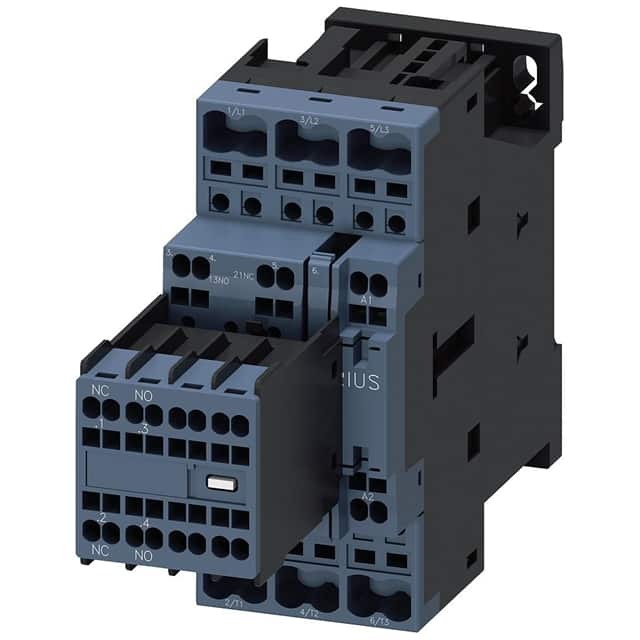

3RT20282AF04 Siemens
Same model may have multiple batches, images only for reference.

3RT20282AF04

Part No 3RT20282AF04
Manufacturer Siemens
Catalog Contactors (Electromechanical)
Description CONTACTOR S0 38A 110VAC 2NO/2NC
Datasheet
3RT20282AF04 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Relays - Contactors (Electromechanical)
Mfr Siemens
Series SIRIUS
Package Box
Product Status Active
Mounting Type Chassis Mount, DIN Rail
Coil Voltage 110VAC
Contact Form 3PST-NO (3 Form A)
Contact Rating (Current) 38 A
Switching Voltage 690VAC - Max
Features Auxiliary Contacts
Termination Style Screw Terminal
Temperature Range - Operating -25°C ~ 60°C
Must Operate Voltage 88 VAC
Operate Time 40 ms
Release Time 16 ms
Coil Power 77VA
Base Product Number 3RT2028
Standard Package 1 pcs
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.49.0065
Win Source Part Number 1013578-3RT20282AF04
Ultra Librarian 3D Model Ultra Librarian 3RT20282AF04 CAD Model

Description

The 1013578-3RT20282AF04 is a 3PST-NO contactor from the SIRIUS series.

  • Termination Style: Screw Terminal
  • Package: Box
  • Coil Voltage: 110VAC
  • Contact Rating: 38A
  • Switching Voltage: 690VAC
  • Mounting Type: Chassis Mount or DIN Rail
  • Temperature Range: -25°C to 60°C
  • Product Status: Active
  • Manufacturer: Siemens
