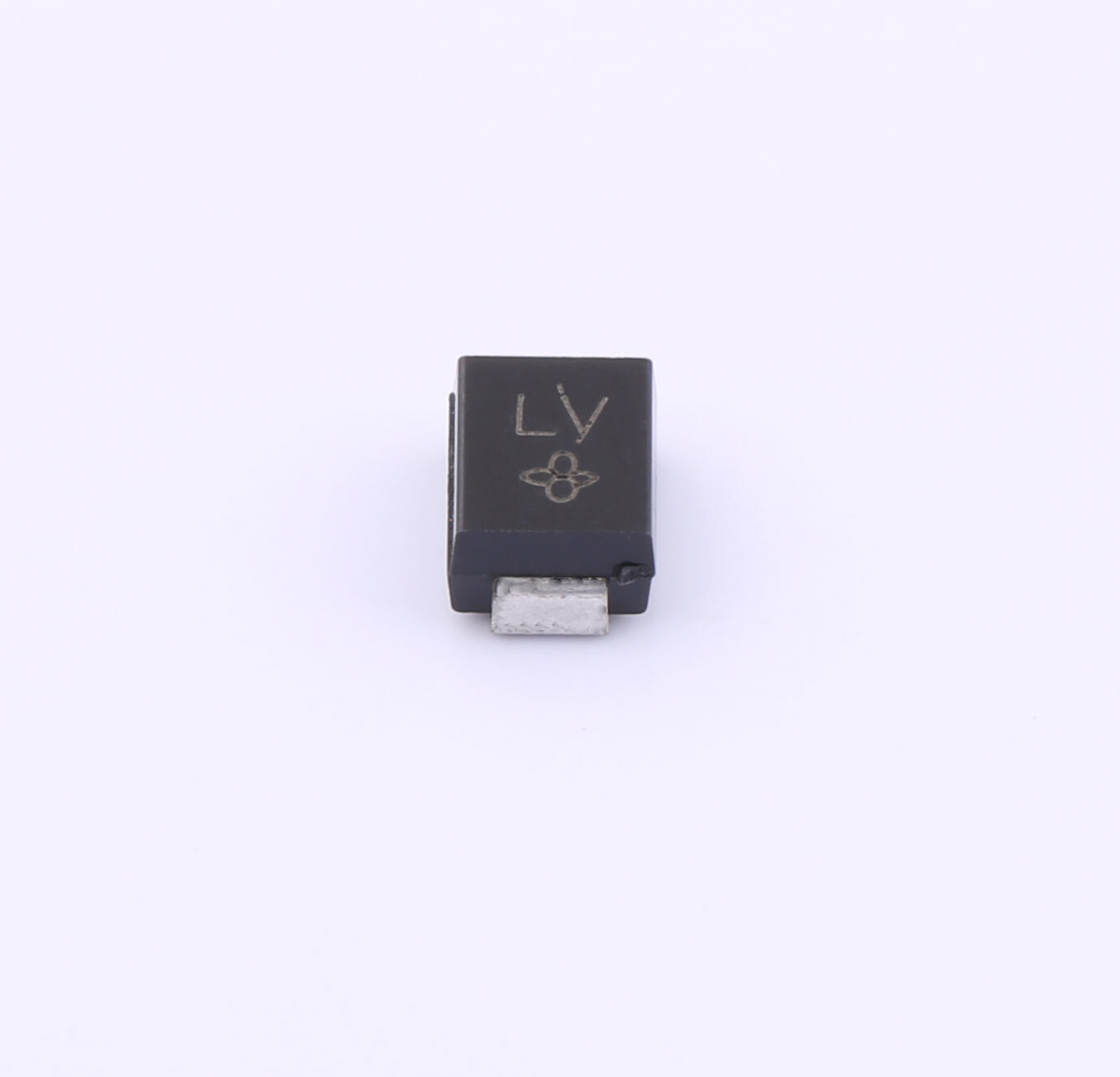

Same model may have multiple batches, images only for reference.
SMBJ20CA ShenZhen SlkorMicro Semicon Co. Ltd – Price, Stock & Datasheet
Same model may have multiple batches, images only for reference.

SMBJ20CA

Part No SMBJ20CA
Manufacturer ShenZhen SlkorMicro Semicon Co. Ltd
Catalog TVS - Diodes
Description 20V 22.2V 18.5A 600W 32.4V SMB
Datasheet
SMBJ20CA Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Win Source Part Number WS1329924-SMBJ20CA
Package Tape & Reel (TR)
Product Status Active
Type Zener
Bidirectional Channels 1
Voltage - Reverse Standoff (Typ) 20V
Voltage - Breakdown (Min) 22.2V
Voltage - Clamping (Max) @ Ipp 32.4V
Current - Peak Pulse (10/1000µs) 18.5A
Power - Peak Pulse 600W
Power Line Protection No
Applications Telecom
Operating Temperature -55°C ~ 175°C (TJ)
Grade -
Mounting Type Surface Mount
Package / Case DO-214AA, SMB
Supplier Device Package DO-214AA (SMB)
Package Tape & Reel (TR);Cut Tape (CT)
Bidirectional Channels 2
Current - Peak Pulse (10/1000µs) 18.6A
Power Line Protection Yes
Applications General Purpose
Operating Temperature -55°C ~ 150°C
Supplier Device Package DO-214AA (SMBJ)
Operating Temperature -55°C ~ 150°C (TJ)
Operating Temperature -65°C ~ 150°C (TJ)
Package Cut Tape (CT)
Package Bulk
Package Strip
Current - Peak Pulse (10/1000µs) 18.52A
Package / Case DO-214AA (SMB)
Ultra Librarian 3D Model Ultra Librarian SMBJ20CA CAD Model
