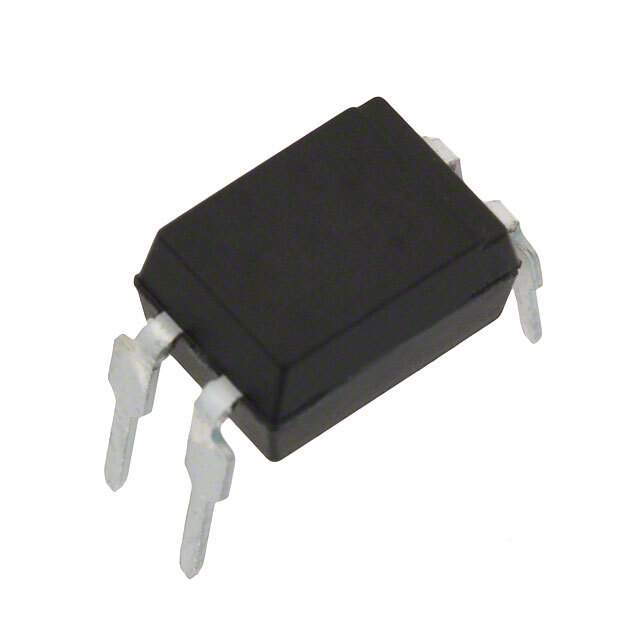

PC851X Real Image
Same model may have multiple batches, images only for reference.

PC851X

Part No PC851X
Manufacturer Sharp Microelectronics
Catalog Optoisolators - Transistor, Photovoltaic Output
Description OPTOISOLATOR 5KV TRANS 4DIP / Optocoupler DC-IN 1-CH Transistor DC-OUT 4-Pin PDIP Sleeve
Datasheet
PC851X Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Categories Isolators
Manufacturer Sharp Microelectronics
Packaging Tube
Part Status Obsolete(EOL)
Number of Channels 1
Voltage - Isolation 5000Vrms
Rise / Fall Time (Typ) 4μs, 5μs
Input Type DC
Output Type Transistor
Output Voltage MAX 350V
Output Current per Channel 50mA
Voltage - Forward (Vf) (Typ) 1.2V
Current - DC Forward (If) (Maximum) 50mA
Vce Saturation (Maximum) 300mV
Operating Temperature Range -25°C ~ 100°C
Mounting Style Through Hole
Package 4-DIP (0.300", 7.62mm)
Manufacturer Package 4-DIP
Win Source Part Number 791446-PC851X
Popularity Medium
Supply and Demand Status Limited
Family Name PC851
Introduction Date August 29, 2002
ECCN EAR99
Country of Origin China, Indonesia, Japan, Philippines
Estimated EOL Date Obsolete / End of life
Ultra Librarian 3D Model Ultra Librarian PC851X CAD Model

Description

This electronic component is an isolator manufactured by Sharp Microelectronics.

  • Win Source Part Number: 791446-PC851X
  • Series: PC851
  • Mounting Style: through-hole
  • Package: 4-DIP (0.300", 7.62mm)
  • Output Type: transistor
  • Input Type: DC
  • Voltage Isolation: 5000Vrms
  • Output Voltage MAX: 350V
  • Current Transfer Ratio: minimum to maximum
  • Status: obsolete (EOL)
  • Popularity: medium
  • Supply and Demand Status: limited
  • Alternative Parts: CPC1303G, PC851XJ0000F
