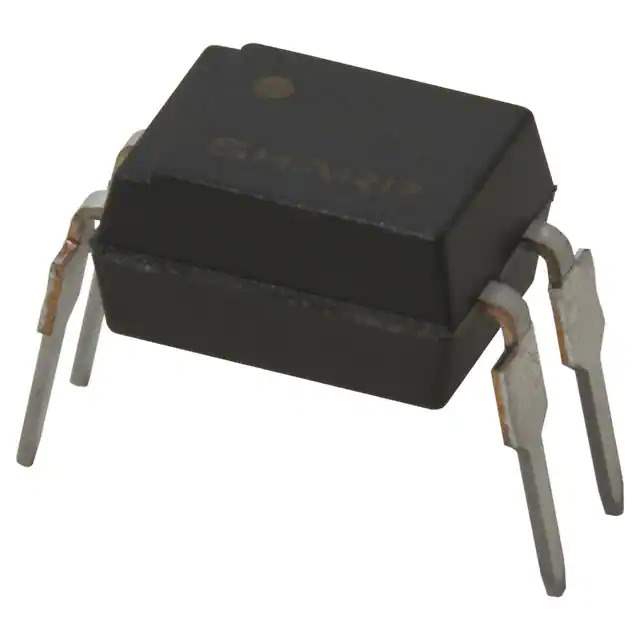

PC817X3CSZ9F

Name: PC817X3CSZ9F
Brand: Sharp Microelectronics
SKU: 888672
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	PC817X3CSZ9F
Manufacturer	Sharp Microelectronics
Catalog	Optoisolators - Transistor, Photovoltaic Output
Description	PHOTOCOUPLER / Optoisolator Transistor Output 5000Vrms 1 Channel 4-DIP
Sample
Rohs State	Need to verify
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Isolators - Optoisolators - Transistor, Photovoltaic Output Optoisolators
Mfr	Sharp Microelectronics
Series	PC817
Package	Tube
Product Status	Obsolete
Number of Channels	1
Voltage - Isolation	5000Vrms
Current Transfer Ratio (Min)	50% @ 5mA
Current Transfer Ratio (Max)	600% @ 5mA
Rise / Fall Time (Typ)	4µs, 3µs
Input Type	DC
Output Type	Transistor
Voltage - Output (Max)	80V
Current - Output / Channel	50mA
Voltage - Forward (Vf) (Typ)	1.2V
Current - DC Forward (If) (Max)	50 mA
Vce Saturation (Max)	200mV
Temperature Range - Operating	-30°C ~ 100°C
Mounting Type	Through Hole
Package / Case	4-DIP (0.300", 7.62mm)
Supplier Device Package	4-DIP
Standard Package	2,000 pcs
Moisture Sensitivity Level (MSL)	Not Applicable
ECCN	OBSOLETE
HTSUS	0000.00.0000
Win Source Part Number	888672-PC817X3CSZ9F
Ultra Librarian 3D Model	Ultra Librarian PC817X3CSZ9F CAD Model

Description

The PC817X3CSZ9F is an optoisolator transistor from Sharp Microelectronics.

Series: PC817
Packaging: Tube
Standard Package Quantity: 2,000 pieces
Output Type: Transistor
Input Type: DC
Maximum Forward Current (If): 50mA
Typical Forward Voltage (Vf): 1.2V
Rise and Fall Times: 4µs and 3µs respectively
Current Transfer Ratio: 50% @ 5mA
Maximum Voltage Isolation: 5000Vrms
Maximum Output Voltage: 80V
Maximum Vce Saturation: 200mV
Mounting: Through-Hole
Package: 4-DIP
Operating Temperature: -30°C to 100°C
Status: Obsolete
