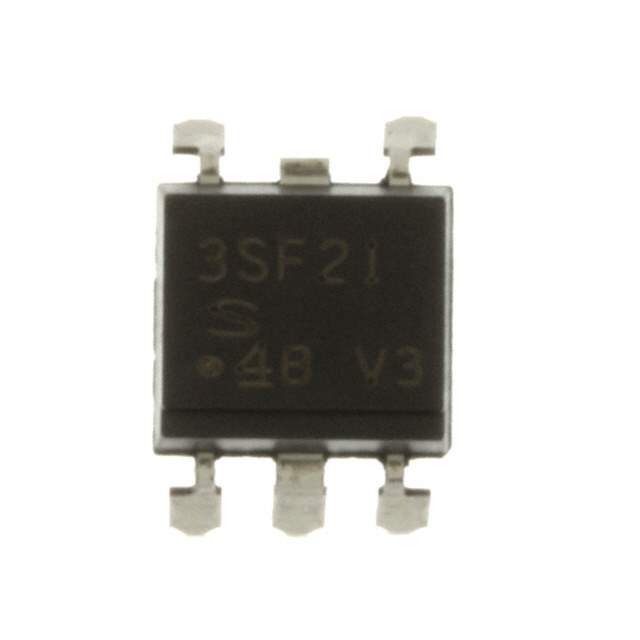

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Isolators
Manufacturer Sharp Microelectronics
Packaging Tube/Rail
Output Type Triac
Zero Crossing Circuit Yes
Number of Channels 1
Isolation Voltage 5000Vrms
Voltage - Off State 600V
Static dV/dt (Min) 1kV/μs
Current - LED Trigger (Ift) (Max) 7mA
Current - On State (It (RMS)) (Max) 100mA
Current - Hold (Ih) 3.5mA
Turn On Time 50μs (Max)
Forward Voltage 1.2V
Continuous forward current- Max 50mA
Temperature Range - Operating -30°C to 100°C
Mounting Through Hole
Case / Package 6-DIP
Approvals BSI, CSA, DEMKO, FIMKO, SEMKO, UR, VDE
Win Source Part Number 120589-PC3SF21YVZBF
Popularity Medium
Supply and Demand Status Limited
Quantity per package 50
Ultra Librarian 3D Model Ultra Librarian PC3SF21YVZBF CAD Model

Description

The PC3SF21YVZBF from Sharp Microelectronics is a through-hole triac output type isolator.

  • Forward Voltage: 1.2V
  • Off-State Voltage: 600V
  • Maximum Current: 100mA
  • Hold Current: 3.5mA
  • Zero-Crossing Circuit: yes
  • Static dV/dt: 1kV/μs
  • LED Trigger Current: 7mA
  • Turn-On Time: 50μs
  • Approvals: BSI, CSA, DEMKO, FIMKO, SEMKO, UR, and VDE
  • Popularity Rate: medium
  • Supply and Demand Status: limited
