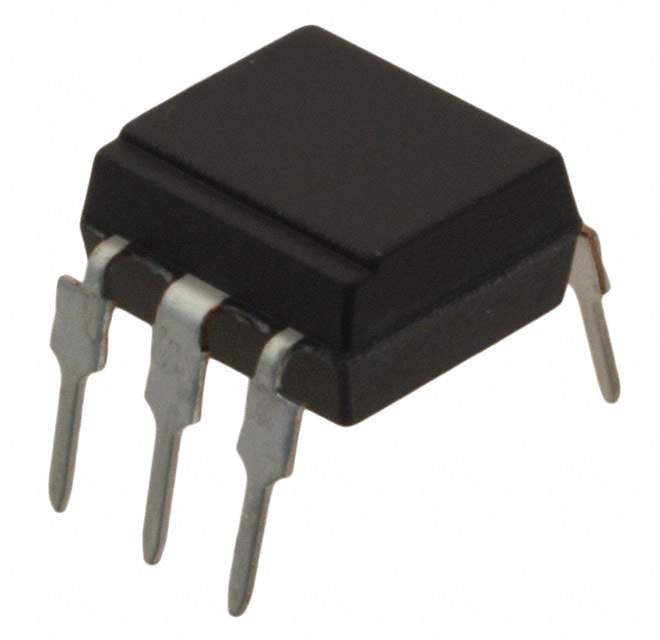

PC3SF21YVZAF Real Image
Same model may have multiple batches, images only for reference.

PC3SF21YVZAF

Part No PC3SF21YVZAF
Manufacturer Sharp Microelectronics
Catalog Optoisolators - Triac, SCR Output
Description OPTOISOLATOR 5KV TRIAC 6DIP
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Isolators
Manufacturer Sharp Microelectronics
Packaging Tube/Rail
Output Type Triac
Zero Crossing Circuit Yes
Number of Channels 1
Isolation Voltage 5000Vrms
Voltage - Off State 600V
Static dV/dt (Min) 1kV/μs
Current - LED Trigger (Ift) (Max) 10mA
Current - On State (It (RMS)) (Max) 100mA
Current - Hold (Ih) 3.5mA
Turn On Time 50μs (Max)
Forward Voltage 1.2V
Continuous forward current- Max 50mA
Temperature Range - Operating -30°C to 100°C
Mounting Through Hole
Case / Package 6-DIP
Approvals BSI, CSA, DEMKO, FIMKO, SEMKO, UR, VDE
Win Source Part Number 042063-PC3SF21YVZAF
Popularity Medium
Supply and Demand Status Balance
Quantity per package 50
Ultra Librarian 3D Model Ultra Librarian PC3SF21YVZAF CAD Model

Description

The Sharp Microelectronics 042063-PC3SF21YVZAF is a through-hole triac output type electronic component that comes in a 6-DIP package.

  • Forward Voltage: 1.2V
  • Voltage-Off State: 600V
  • Popularity: medium
  • Supply and Demand Status: balance
  • Approvals: BSI, CSA, DEMKO, FIMKO, SEMKO, UR, and VDE
  • Isolation Voltage: 5000Vrms
  • Current-Hold (Ih): 3.5mA
