PC357N2TJ00F Sharp Microelectronics
Same model may have multiple batches, images only for reference.

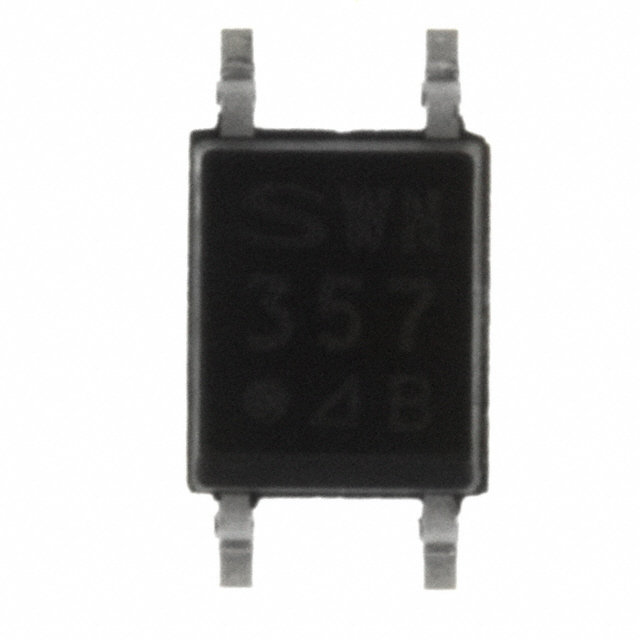

PC357N2TJ00F

Part No PC357N2TJ00F
Manufacturer Sharp Microelectronics
Catalog Optoisolators - Transistor, Photovoltaic Output
Description OPTOISO 3.75KV TRANS 4-MINI-FLAT / Optocoupler DC-IN 1-CH Transistor DC-OUT 4-Pin Mini-Flat T/R
Datasheet
PC357N2TJ00F Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Isolators
Manufacturer Sharp Microelectronics
Packaging Reel - TR
Status Obsolete(EOL)
Number of Channels 1
Isolation Voltage 3750Vrms
Minimum DC Current Transfer Ratio 130% @ 5mA
Maximum DC Current Transfer Ratio 260% @ 5mA
Rise and Fall Time 4μs, 3μs
Input Type DC
Output Type Transistor
Maximum Output Voltage 80V
Channel Output Current 50mA
Forward Voltage 1.2V
Continuous forward current- Max 50mA
Vce Saturation (Max) 200mV
Temperature Range - Operating -30°C to 100°C
Mounting SMD (SMT)
Case / Package 4-Mini-Flat
Win Source Part Number 026422-PC357N2TJ00F
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Balance
Application Field Used in Computers & Computer Peripherals, Test & Measurement, Signal Processing, Power Management
Family Name PC357
Introduction Date February 24, 1997
ECCN EAR99
Country of Origin China, Indonesia, Japan
Estimated EOL Date Obsolete / End of life
Ultra Librarian 3D Model Ultra Librarian PC357N2TJ00F CAD Model

Description

The Sharp Microelectronics PC357N2TJ00F is a transistor output optocoupler.

  • Channels: single-channel
  • Isolation Voltage: 3750Vrms
  • DC Current Transfer Ratio (min): 130% @ 5mA
  • Forward Voltage: 1.2V
  • Vce Saturation (max): 200mV
  • Continuous Forward Current: 50mA
  • Output Voltage (max): 80V
  • Rise Time: 4μs
  • Fall Time: 3μs
  • Applications: computers and computer peripherals, test and measurement, signal processing and power management
