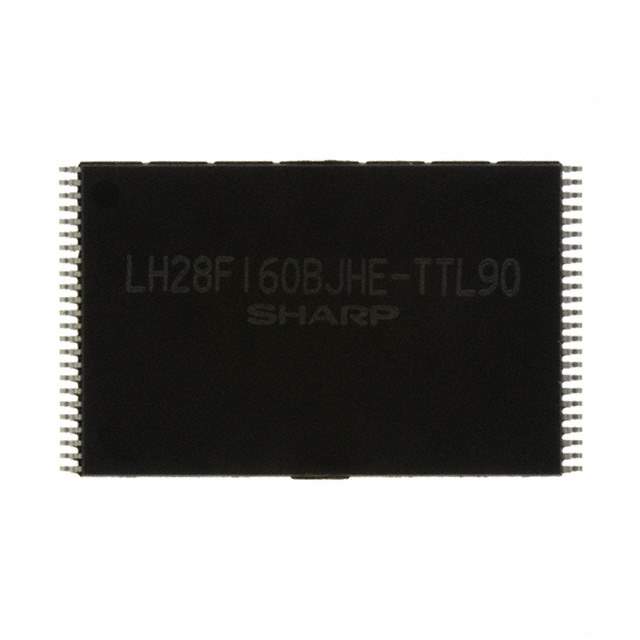

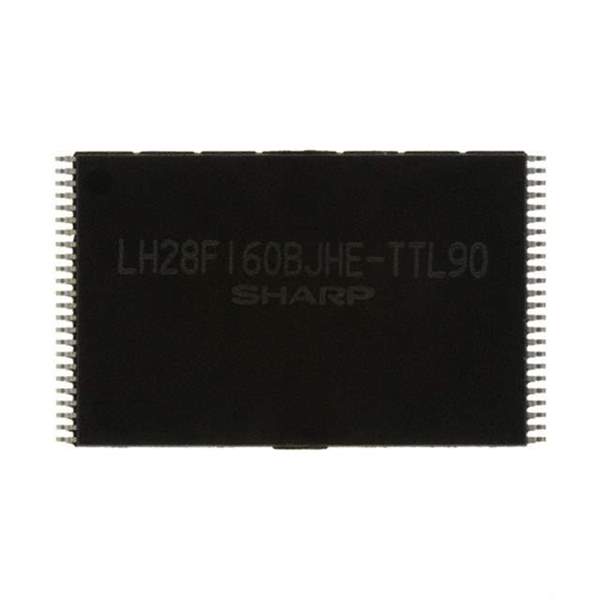

LH28F160BJHE-TTL90 Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer Sharp Microelectronics
Packaging Tray
Status Obsolete(EOL)
Memory Format FLASH
Technology FLASH - Boot Block
Memory Size 16Mb (2M x 8, 1M x 16)
Access Time 90ns
Supply Voltage - Operating 2.7 V to 3.6 V
Temperature Range - Operating -40°C to 85°C (TA)
Mounting SMD (SMT)
Case / Package 48-TSOP
Win Source Part Number 070966-LH28F160BJHE-TTL90
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian LH28F160BJHE-TTL90 CAD Model

Description

The Sharp Microelectronics FLASH - Boot Block Memory IC is a 16Mb (2M x 8, 1M x 16) IC with an access time of 90ns.

  • Access Time: 90ns
  • Supply Voltage: 2.7 V to 3.6 V
  • Package: 48-TSOP
  • Status: Obsolete (EOL)
  • Popularity: Medium
