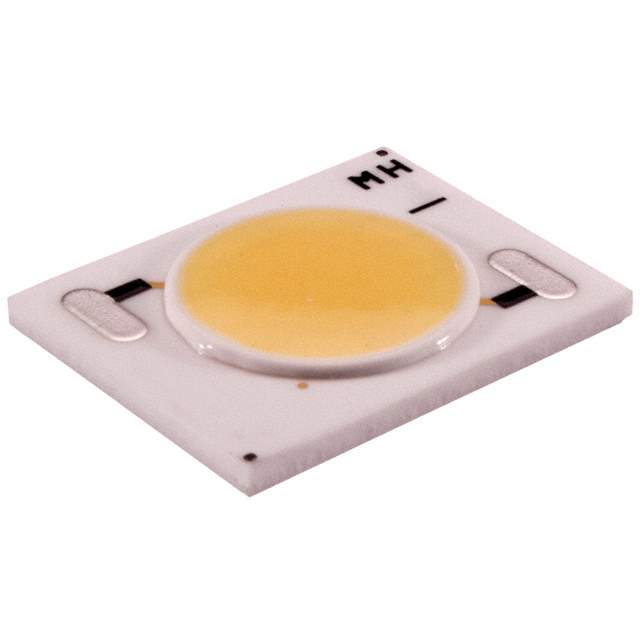

GW5BTF30K00 Real Image
Same model may have multiple batches, images only for reference.

GW5BTF30K00

Part No GW5BTF30K00
Manufacturer Sharp Microelectronics
Catalog LED Lighting - COBs, Engines, Modules
Description LED MOD 6.7W MINI ZENIGATA 3000K / High Efficiency LED Module
Datasheet
GW5BTF30K00 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Optoelectronics
Manufacturer Sharp Microelectronics
Series Mini Zenigata
Packaging Tray
Part Status Obsolete(EOL)
Type Chip On Board (COB)
Color White, Warm
CCT (K) 3000K
Configuration Rectangle
Flux @ Current/Temperature - Test 375 lm (Typ)
Current - Test 640mA
Temperature - Test 25°C
Voltage - Forward (Vf) (Typ) 10.2V
Lumens/Watt @ Current - Test 57 lm/W
Current - Max 700mA
CRI (Color Rendering Index) 83
Dimension 15.00mm L x 12.00mm W
Height 1.60mm
Light Emitting Surface (LES) 8.90mm L x 7.90mm W
Lens Type Flat
Win Source Part Number 775477-GW5BTF30K00
Popularity Medium
Supply and Demand Status Limited
Family Name GW5BTF30K00
Introduction Date December 17, 2009
ECCN EAR99
Estimated EOL Date Obsolete / End of life
Ultra Librarian 3D Model Ultra Librarian GW5BTF30K00 CAD Model

Description

The Sharp Microelectronics GW5BTF30K00 is a rectangular chip on board (COB) LED with a maximum current of 700mA and a forward voltage of 10.2V.

  • Supply and Demand Status: Limited
  • Series: Mini Zenigata
  • Win Source Part Number: 775477-GW5BTF30K00
  • Color Temperature: 3000K (Warm White)
  • CRI: 83
  • Obsolete (EOL): Yes
  • Alternative Parts Available: Yes
  • Luminous Efficacy: 57 lm/W
  • Flux: 375 lm (Typ) @ 640mA/25°C
