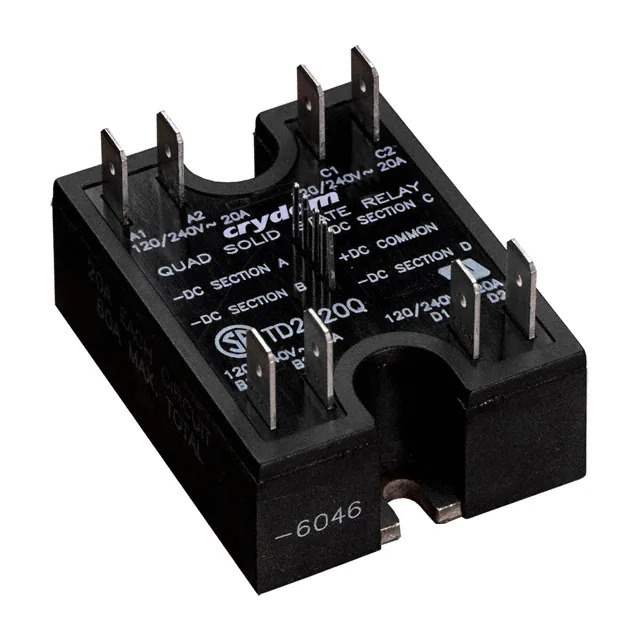

TD2420Q Real Image
Same model may have multiple batches, images only for reference.

TD2420Q

Part No TD2420Q
Manufacturer Sensata-Crydom
Catalog Solid State Relays
Description SSR RELAY SPST-NO 20A 24-280V
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Relays - Solid State Relays
Mfr Sensata-Crydom
Series T
Package Bulk
Product Status Active
Mounting Type Chassis Mount
Circuit SPST-NO (1 Form A) x 4
Output Type AC, Zero Cross
Voltage - Input 4 ~ 15VDC
Voltage - Load 24 V ~ 280 V
Load Current 20 A
Termination Style Quick Connect - 0.250" (6.3mm)
Package / Case Hockey Puck
Standard Package 10 pcs
MSL Level Not Applicable
ECCN EAR99
HTSUS 8536.49.0080
California Prop 65 Warning Information
Win Source Part Number 847005-TD2420Q
Ultra Librarian 3D Model Ultra Librarian TD2420Q CAD Model

Description

The 847005-TD2420Q is a solid-state relay from the T series by Sensata-Crydom.

  • Voltage Input Range: 4 ~ 15VDC
  • Circuit Configuration: SPST-NO (1 Form A)
  • Load Current Capacity: 20 A
  • Voltage Load Range: 24 V ~ 280 V
  • Termination Style: Quick Connect, 0.250" (6.3mm)
  • Package: Hockey Puck
  • Mounting Type: Chassis Mount
  • Product Status: Active
