Same model may have multiple batches, images only for reference.

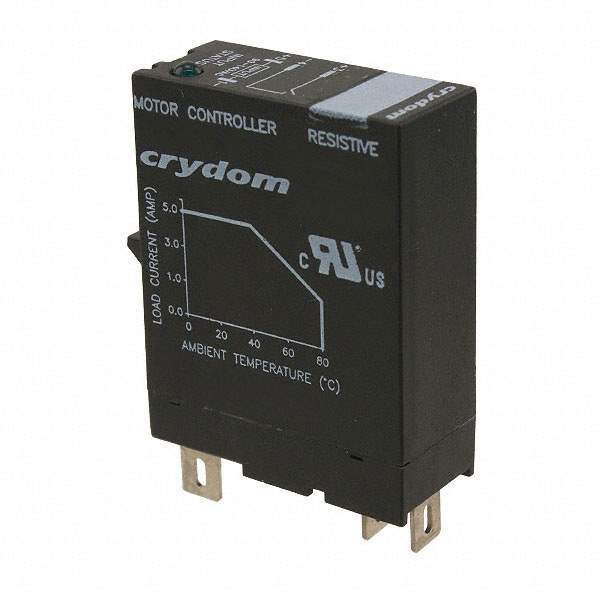

ED06D5 Real Image
Same model may have multiple batches, images only for reference.

ED06D5

Part No ED06D5
Manufacturer Sensata-Crydom
Catalog Solid State Relays
Description SSR RELAY SPST-NO 5A 1-48V / Solid State SPST-NO (1 Form A) Module
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Relays - Solid State Relays
Mfr Sensata-Crydom
Series LifePlus ED
Package Bulk
Mounting Type Socketable
Circuit SPST-NO (1 Form A)
Output Type DC
Voltage - Input 5 ~ 15VDC
Voltage - Load 1 V ~ 48 V
Load Current 5 A
Termination Style Plug In, Quick Connect - 0.187" (4.7mm)
Package / Case Module
Standard Package 30
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.41.0030
California Prop 65 Warning Information
Win Source Part Number 1339820-ED06D5
Ultra Librarian 3D Model Ultra Librarian ED06D5 CAD Model

Description

The Sensata-Crydom ED06D5 is a solid state relay belonging to the LifePlus ED series.

  • Series: LifePlus ED
  • Termination Style: Plug-in, Quick Connect
  • Packaging: Bulk
  • Standard Package: 30
  • Voltage Input: 5 ~ 15VDC
  • Output Type: DC
  • Circuit: Single Pole Single Throw Normally Open
  • Load Current: 5 A
  • Voltage Load: 1 V to 48 V
  • Socketable: Yes
  • Package/Case: Module
