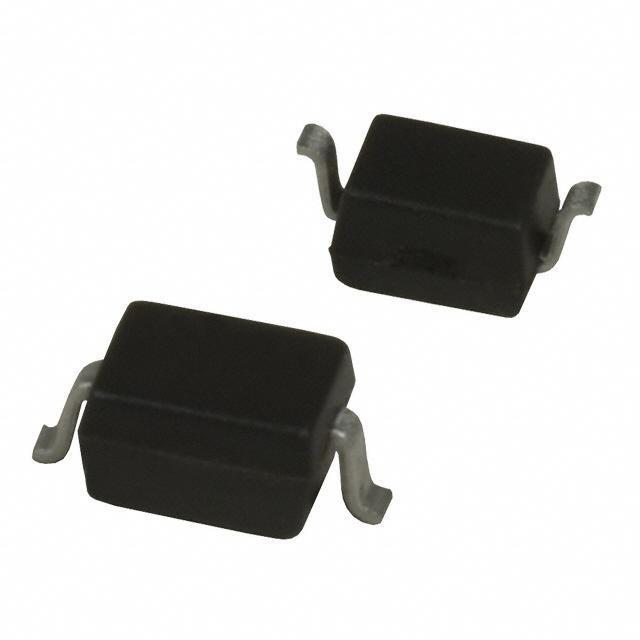

Same model may have multiple batches, images only for reference.

UCLAMP3301D.TCT

Name: UCLAMP3301D.TCT
Brand: Semtech Corporation
SKU: 533376
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	UCLAMP3301D.TCT
Manufacturer	Semtech Corporation
Catalog	TVS - Diodes
Description	TVS DIODE 3.3VWM 9.5VC SOD323 / ESD Suppressor Diode TVS Uni-Dir 3.3V 2-Pin SOD-323 T/R
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Circuit Protection
Manufacturer	Semtech Corporation
Packaging	Reel - TR
Status	Active
Type	Zener
Unidirectional Channels	1
STAND-OFF Voltage (Vwm)	3.3V (Max)
Minimum Breakdown Voltage	3.5V
Max Clamping Voltage	9.5V
Peak Pulse Current(Ippm)	10A (8/20μs)
Power Dissipation - Pd	100W
Applications	General Purpose
Capacitance @ Frequency	50pF @ 1MHz
Temperature Range - Operating	-55°C to 125°C (TJ)
Mounting	SMD (SMT)
Case / Package	SOD-323
Win Source Part Number	1116214-UCLAMP3301D.TCT
Is this a common-used part?	Yes
Popularity	High
Supply and Demand Status	Sufficient
Application Field	Used in Safety, Computers & Computer Peripherals, Portable Devices, Communications & Networking
Family Name	uClamp3301D
Introduction Date	October 25, 2004
ECCN	EAR99
Country of Origin	China
Halogen Free	Compliant
Estimated EOL Date	2026
Ultra Librarian 3D Model	Ultra Librarian UCLAMP3301D.TCT CAD Model

Description

The Semtech Corporation uClamp3301D is a Zener diode designed for use in general purpose applications.

Maximum Stand-Off Voltage: 3.3V
Minimum Breakdown Voltage: 3.5V
Peak Pulse Current: 10A
Suitable for: Use in safety, computers and computer peripherals, portable devices, and communications and networking.
Supply and Demand Status: Sufficient
Manufacturer: Semtech Corporation
