Same model may have multiple batches, images only for reference.

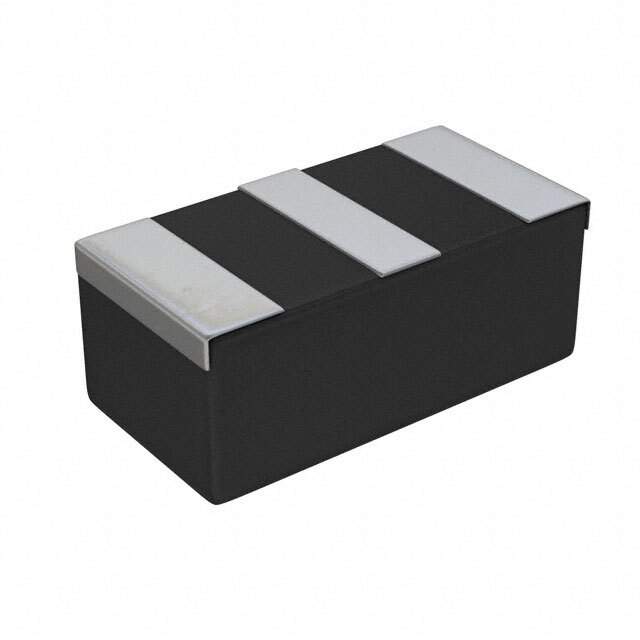

UCLAMP0512Z.TFT Real Image
Same model may have multiple batches, images only for reference.

UCLAMP0512Z.TFT

Part No UCLAMP0512Z.TFT
Manufacturer Semtech Corporation
Catalog TVS - Diodes
Description TVS DIODE 5VWM 15VC SLP0603P3X3A
Datasheet
UCLAMP0512Z.TFT Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Circuit Protection
Manufacturer Semtech Corporation
Packaging Reel - TR
Status Active
Type Zener
Bidirectional Channels 2
STAND-OFF Voltage (Vwm) 5V (Max)
Minimum Breakdown Voltage 6V
Max Clamping Voltage 15V
Peak Pulse Current(Ippm) 2A (8/20μs)
Power Dissipation - Pd 30W
Applications General Purpose
Capacitance @ Frequency 5pF @ 1MHz
Temperature Range - Operating -40°C to 125°C (TJ)
Mounting SMD (SMT)
Case / Package SLP0603P3X3A
Win Source Part Number 213706-UCLAMP0512Z.TFT
Popularity Medium
Supply and Demand Status Balance
Quantity per package 15k pcs
Ultra Librarian 3D Model Ultra Librarian UCLAMP0512Z.TFT CAD Model

Description

The Semtech Corporation Zener diode is a high-quality electronic component designed for general-purpose applications.

  • Function: protect sensitive circuits from voltage spikes and surges by clamping the input voltage to a safe level.
  • Type: bidirectional
  • Capacitance: 5pF @ 1MHz
  • Operating Temperature Range: -40°C to 125°C
  • Package: SLP0603P3X3A
  • Clamping Voltage: 15V (Max)
  • Peak Pulse Current: 2A (8/20μs)
  • Benefit: reliable choice for protecting your circuits.
