Same model may have multiple batches, images only for reference.

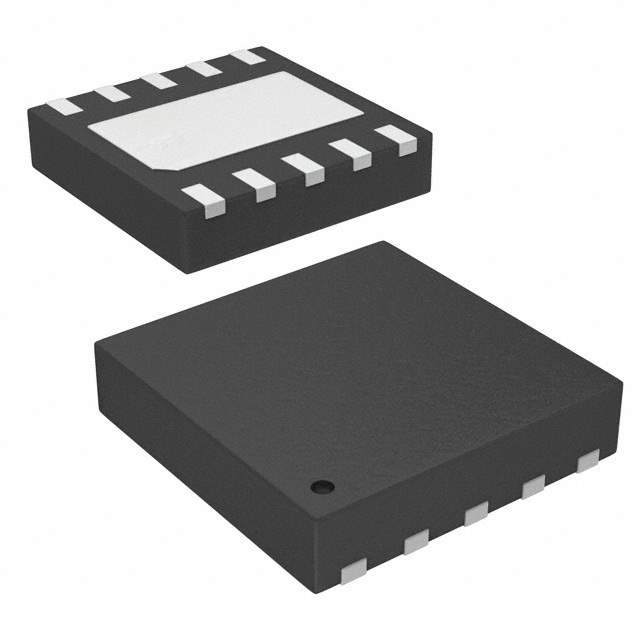

TCLAMP2502N.TCT Real Image
Same model may have multiple batches, images only for reference.

TCLAMP2502N.TCT

Part No TCLAMP2502N.TCT
Manufacturer Semtech Corporation
Catalog TVS - Diodes
Description TVS DIODE 2.5VWM 25VC 10SLP
Datasheet
TCLAMP2502N.TCT Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Circuit Protection
Manufacturer Semtech Corporation
Packaging Reel - TR
Status Active
Type Steering (Rail to Rail)
Unidirectional Channels 2
STAND-OFF Voltage (Vwm) 2.5V (Max)
Max Clamping Voltage 25V
Peak Pulse Current(Ippm) 95A (8/20μs)
Power Dissipation - Pd 2500W (2.5kW)
Power Line Protection Yes
Applications Ethernet, Telecom
Capacitance @ Frequency 25pF @ 1MHz
Temperature Range - Operating -40°C to 85°C (TJ)
Mounting SMD (SMT)
Case / Package SLP2626P10 (2.6x2.6)
Win Source Part Number 032012-TCLAMP2502N.TCT
Popularity Medium
Supply and Demand Status Sufficient
Ultra Librarian 3D Model Ultra Librarian TCLAMP2502N.TCT CAD Model

Description

The Semtech Corporation TCLAMP2502N.TCT is a steering (rail to rail) circuit protection device designed for use in Ethernet and telecom applications.

  • Temperature Range: -40°C to 85°C
  • Package: SLP2626P10 (2.6x2.6)
  • Channels: two unidirectional
  • Protection: power line protection
  • Capacitance: 25pF @ 1MHz
  • Stand-off Voltage: 2.5V (Max)
  • Peak Pulse Current: 95A (8/20μs)
  • Power Dissipation: 2500W (2.5kW)
  • Packaging: reel - TR
