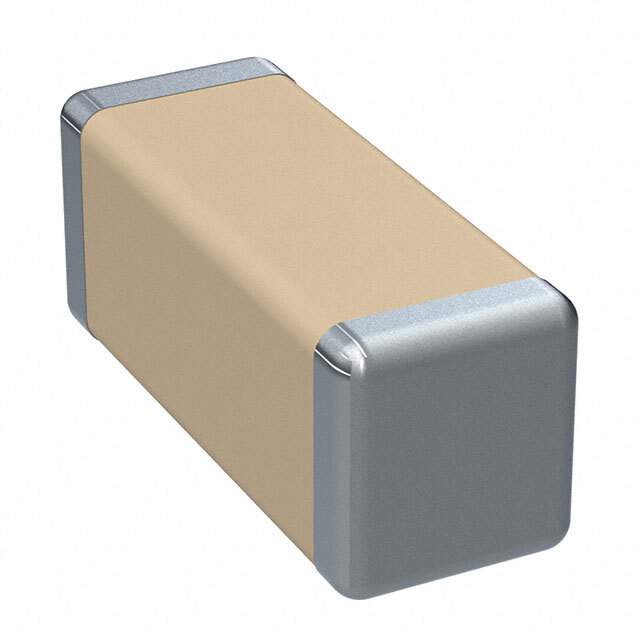

C1808C272KGRACTU Real Image
Same model may have multiple batches, images only for reference.

C1808C272KGRACTU

Part No C1808C272KGRACTU
Manufacturer Kemet
Catalog Ceramic Capacitors
Description Multilayer Ceramic Capacitor, 2700 pF, 2000 V, ± 10%, X7R, 1808 [4520 Metric]
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Capacitance 2.7 nF
Case / Package 1808
Case Code (Imperial) 1808
Case Code (Metric) 4520
Depth 2 mm
Dielectric X7R
Dielectric Material Ceramic
Height 2 mm
Lead Free Lead Free
Length 4.699 mm
Max Operating Temperature 125 °C
Min Operating Temperature -55 °C
Mount Surface Mount
Number of Pins 2
Packaging Tape & Reel (TR)
RoHS Compliant
Termination SMD/SMT
Thickness 2.159 mm
Tolerance 10 %
Voltage Rating 2 kV
Voltage Rating (DC) 2 kV
Width 2.0066 mm
Win Source Part Number 1139693-C1808C272KGRACTU
Categories Ceramic Capacitors
Manufacturer Kemet
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian C1808C272KGRACTU CAD Model

Description

The 1139693-C1808C272KGRACTU is an X7R type of capacitor with a capacitance of 2.7 nF from Kemet.

  • Voltage Rating: 2 kV
  • Tolerance: 10%
  • Capacitor Type: Surface Mount
  • Package: Tape & Reel
  • Operating Temperature Range: -55°C to 125°C
  • Length: 4.699 mm
  • Thickness: 2.159 mm
