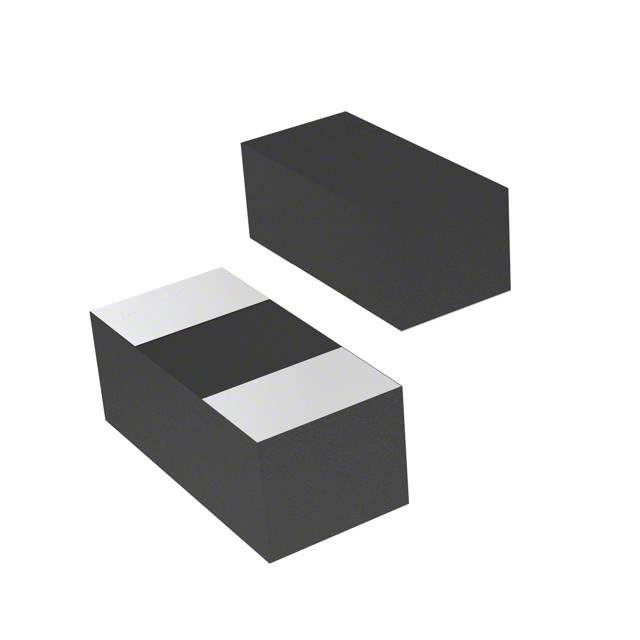

RCLAMP1821Z.TNT Real Image
Same model may have multiple batches, images only for reference.

RCLAMP1821Z.TNT

Part No RCLAMP1821Z.TNT
Manufacturer Semtech Corporation
Catalog TVS - Diodes
Description TVS DIODE 18VWM 34VC
Datasheet
RCLAMP1821Z.TNT Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Circuit Protection
Manufacturer Semtech Corporation
Packaging Reel - TR
Status Active
Type Zener
Bidirectional Channels 1
STAND-OFF Voltage (Vwm) 18V (Max)
Minimum Breakdown Voltage 20V
Max Clamping Voltage 34V
Peak Pulse Current(Ippm) 2.5A (8/20μs)
Power Dissipation - Pd 85W
Applications General Purpose
Capacitance @ Frequency 0.63pF @ 1MHz
Temperature Range - Operating -55°C to 125°C (TJ)
Mounting SMD (SMT)
Case / Package SLP0603P2X3B
Win Source Part Number 1091639-RCLAMP1821Z.TNT
Popularity Medium
Supply and Demand Status Sufficient
Ultra Librarian 3D Model Ultra Librarian RCLAMP1821Z.TNT CAD Model

Description

The Semtech Corporation RCLAMP1821Z.TNT is a zener type circuit protection device designed for general purpose applications.

  • Capacitance: 0.63pF @ 1MHz
  • Stand-Off Voltage: 18V (Max)
  • Minimum Breakdown Voltage: 20V
  • Max Clamping Voltage: 34V
  • Peak Pulse Current: 2.5A (8/20μs)
  • Power Dissipation: 85W
  • Packaging: SMD (SMT)
  • Case/Package Size: SLP0603P2X3B
  • Popularity: Medium
  • Supply and Demand Status: Sufficient
