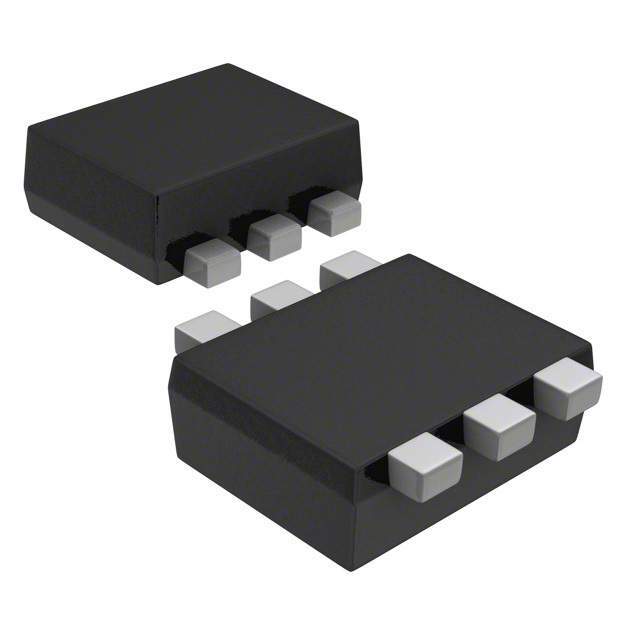

RCLAMP0502A.TCT Semtech Corporation RCLAMP0502A.TCT label picture RCLAMP0502A.TCT real image
Same model may have multiple batches, images only for reference.
RCLAMP0502A.TCT Semtech Corporation RCLAMP0502A.TCT label picture RCLAMP0502A.TCT real image
RCLAMP0502A.TCT Semtech Corporation RCLAMP0502A.TCT label picture RCLAMP0502A.TCT real image
Same model may have multiple batches, images only for reference.

RCLAMP0502A.TCT

Part No RCLAMP0502A.TCT
Manufacturer Semtech Corporation
Catalog TVS - Diodes
Description ESD Suppressor Diode TVS Uni-Dir 5V 6-Pin SC-89 T/R / TVS DIODE 5VWM 18VC SC89-6
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Circuit Protection
Manufacturer Semtech Corporation
Packaging Reel - TR
Status Active
Type Steering (Rail to Rail)
Unidirectional Channels 2
STAND-OFF Voltage (Vwm) 5V (Max)
Minimum Breakdown Voltage 6V
Max Clamping Voltage 18V
Peak Pulse Current(Ippm) 3A (8/20μs)
Power Dissipation - Pd 50W
Power Line Protection Yes
Applications Ethernet, HDMI
Capacitance @ Frequency 0.9pF @ 1MHz
Temperature Range - Operating -55°C to 125°C (TJ)
Mounting SMD (SMT)
Case / Package SC-89-6
Win Source Part Number 027224-RCLAMP0502A.TCT
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Balance
Family Name RClamp0502A
Introduction Date August 07, 2007
ECCN EAR99
Country of Origin China
Halogen Free Compliant
Estimated EOL Date 2026
Ultra Librarian 3D Model Ultra Librarian RCLAMP0502A.TCT CAD Model

Description

The RClamp0502A.TCT is a steering (rail to rail) type circuit protection electronic component manufactured by Semtech Corporation.

  • Designed To: protect electronic circuits from ESD and other voltage transients
  • Stand-off Voltage: 5V (max)
  • Peak Pulse Current: 3A (8/20μs)
  • Commonly Used In: Ethernet and HDMI applications
