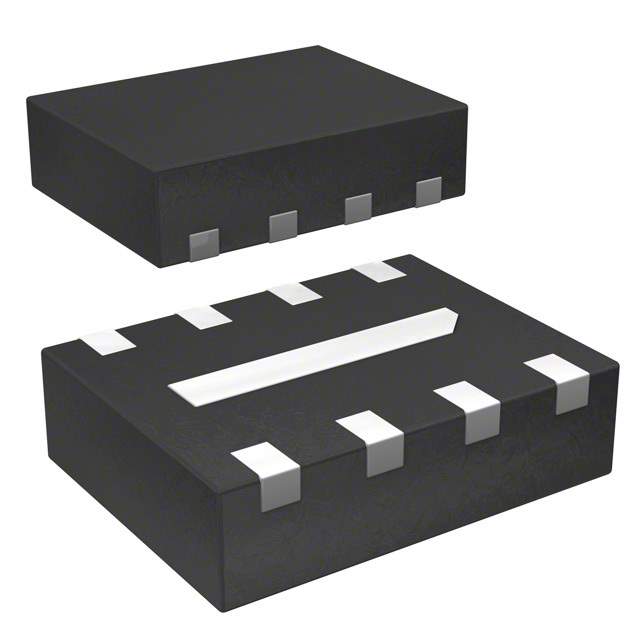

The ECLAMP2394P is a transient voltage suppression (TVS) diode array designed by Semtech Corporation to protect sensitive electronic components from electrostatic discharge (ESD), electrical fast transients (EFT), and surge events. It integrates multiple TVS diodes into a single package, providing comprehensive protection for data lines and interfaces. This device is part of Semtech's ECLAMP series, known for its low clamping voltage, low capacitance, and fast response time.

Applications:

• USB Interfaces: Protection of USB data lines in computers, peripherals, and mobile devices.
• HDMI Ports: Safeguarding HDMI ports in televisions, monitors, and set-top boxes.
• Ethernet Ports: Protecting Ethernet ports in network interfaces, routers, and switches.
• Display Ports: Shielding DisplayPort interfaces in graphics cards and display devices.
• Mobile Devices: Protecting data lines in smartphones, tablets, and other portable electronics.

Features:

• Low Clamping Voltage: Minimizes stress on protected components during transient events.
• Low Capacitance: Ensures signal integrity in high-speed data transmission.
• Fast Response Time: Quickly clamps transient voltages to protect against ESD and surge events.
• Integrated TVS Diode Array: Provides comprehensive protection for multiple data lines.
• Small Package Size: Saves valuable board space in compact electronic devices.
• RoHS Compliant: Complies with RoHS environmental standards, ensuring lead-free construction.

Benefits:

• Enhanced ESD Protection: Protects sensitive components from damage due to electrostatic discharge.
• Improved System Reliability: Reduces the risk of system failures caused by transient voltage events.
• Minimized Signal Degradation: Low capacitance ensures signal integrity in high-speed data transmission.
• Space Savings: Compact package allows for higher density designs.
• Cost-Effective Protection: Provides reliable protection at a competitive price point.

Additional Details:

The ECLAMP2394P typically features a standoff voltage (working voltage) suitable for protecting 5V data lines. The clamping voltage is typically below 10V during an ESD event, ensuring the protected components are not exposed to damaging voltages. The device’s dynamic resistance is low, which contributes to the low clamping voltage. It meets industry standards for ESD immunity, such as IEC 61000-4-2.

Semtech's ECLAMP series offers a reliable and effective solution for protecting sensitive electronic components from ESD and surge events. The ECLAMP2394P’s combination of low clamping voltage, low capacitance, and fast response time makes it an ideal choice for safeguarding high-speed data interfaces in a wide range of applications.
