Same model may have multiple batches, images only for reference.

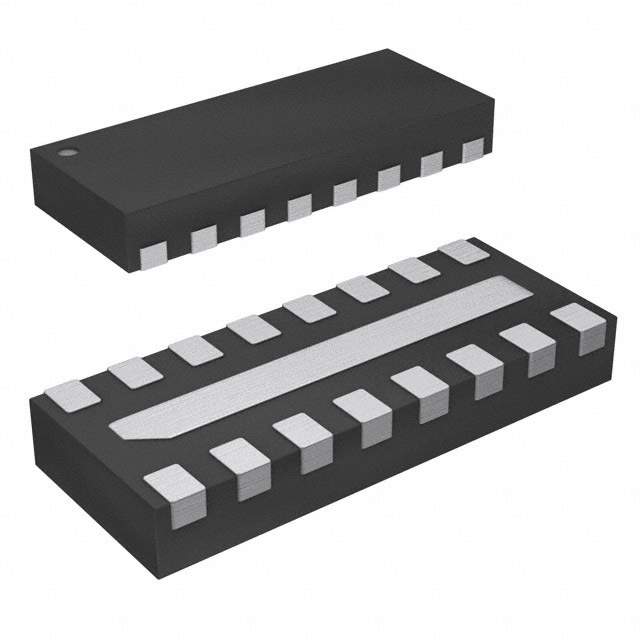

ECLAMP2388K.TCT Real Image
Same model may have multiple batches, images only for reference.

ECLAMP2388K.TCT

Part No ECLAMP2388K.TCT
Manufacturer Semtech Corporation
Catalog EMI/RFI Filters (LC, RC Networks)
Description ESD/EMI Protection for Color LCD Interfaces
Datasheet
ECLAMP2388K.TCT Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Filters
Manufacturer Semtech Corporation
Series EMIClamp
Packaging Reel - TR
Type Low Pass
Filter Order 2nd
Technology RC (Pi)
Number of Channels 8
Attenuation Value 30dB @ 800MHz ~ 2.7GHz
Resistance - Channel (Ohms) 200
Values R = 200 Ohms, C = 12pF
ESD Protection Yes
Operating Temperature Range -40°C ~ 85°C
Applications Data Lines for Mobile Devices
Mounting SMD
Package 16-UFDFN Exposed Pad
Size 0.130" L x 0.051" W (3.30mm x 1.30mm)
Height 0.022" (0.55mm)
Win Source Part Number 1170699-ECLAMP2388K.TCT
Manufacturer Homepage www.semtech.com
Family Name EClamp2388K
Introduction Date May 23, 2007
ECCN EAR99
Country of Origin China
Halogen Free Compliant
Estimated EOL Date 2023
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian ECLAMP2388K.TCT CAD Model

Description

The 1170699-ECLAMP2388K.TCT is a low pass type electronic component from Semtech Corporation that is used in data lines for mobile devices.

  • Type: Low Pass
  • Application: Data Lines (Mobile Devices)
  • Channels: 8
  • Attenuation: 30dB @ 800MHz to 2.7GHz
  • Filter Order: 2nd
  • Resistance - Channel (ohms): 200
  • Manufacturer Homepage: www.semtech.com
  • Manufacturer: Semtech Corporation
