Same model may have multiple batches, images only for reference.

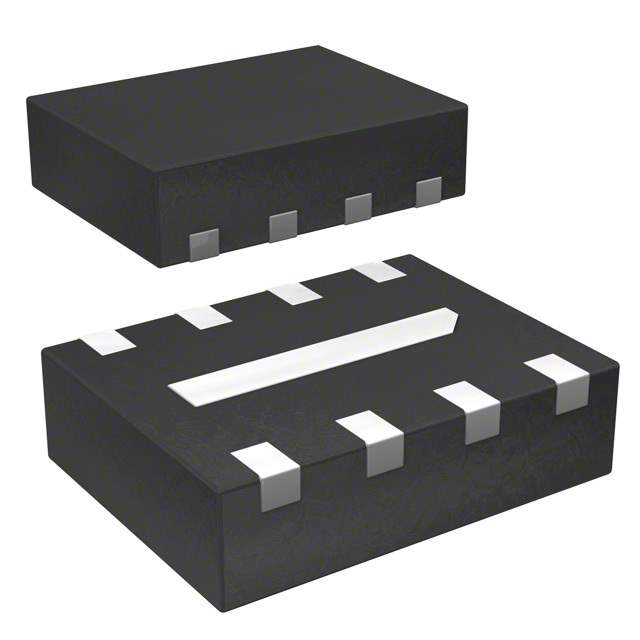

ECLAMP2384P.TCT Real Image
Same model may have multiple batches, images only for reference.

ECLAMP2384P.TCT

Part No ECLAMP2384P.TCT
Manufacturer Semtech Corporation
Catalog EMI/RFI Filters (LC, RC Networks)
Description FILTER RC(PI) 200 OHM/12PF SMD
Datasheet
ECLAMP2384P.TCT Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Filters
Manufacturer Semtech Corporation
Packaging Reel - TR
Status Active
Type Low Pass
Filter Order 2nd
Technology RC (Pi)
Number of Channels 4
Attenuation Value 30dB @ 800MHz to 2.7GHz
Resistance - Channel (Ohms) 200
Values R = 200 Ohms, C = 12pF
ESD Protection Yes
Temperature Range - Operating -40°C to 85°C
Applications Data Lines for Mobile Devices
Mounting SMD (SMT)
Dimension 0.083" L x 0.063" W (2.10mm x 1.60mm)
Height 0.026" (0.65mm)
Win Source Part Number 080885-ECLAMP2384P.TCT
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian ECLAMP2384P.TCT CAD Model

Description

Overview

The ECLAMP2384P.TCT is a versatile ESD protection solution tailored for modern electronic applications, enhancing durability and performance.

Features and Benefits

  • Efficient ESD Spike Absorption: Minimizes downtime and repair costs.
  • Dual Transient Protection: Shields circuits from dual-axis threats.
  • Environmentally Friendly: Lead-free and compliant with international standards.
  • Easy Implementation: Simplifies the design and installation process.

Applications

  • Wearable Technology
  • Tablets
  • Instrumentation Panels
  • Broadcast Equipment

Additional Details

Renowned for its superior ESD protection and eco-friendly construction, the ECLAMP2384P.TCT represents an ideal choice for next-generation devices seeking advanced protection systems.
